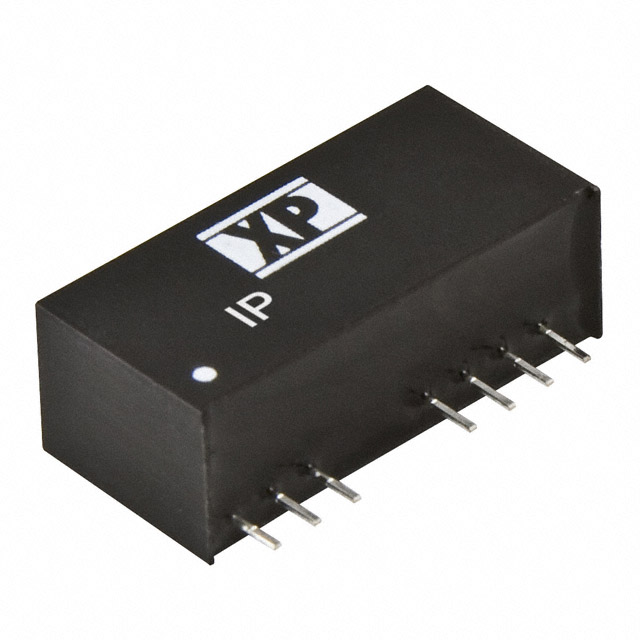

IP2405SA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 5V 3W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for IP2405SA
- Description：DC DC CONVERTER 5V 3W
- Series：IP (3W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：9V
- Voltage - Input (Max)：36V
- Voltage - Output 1：5V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：600mA
- Power (Watts)：3 W
- Voltage - Isolation：1.6 kV
- Applications：ITE (Commercial)
- Features：Remote On/Off, SCP
- Operating Temperature：-40°C ~ 85°C
- Efficiency：79%
- Mounting Type：Through Hole
- Package / Case：8-SIP Module, 7 Leads
- Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
- Supplier Device Package：-
- Control Features：Enable, Active Low
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for IP2405SA
