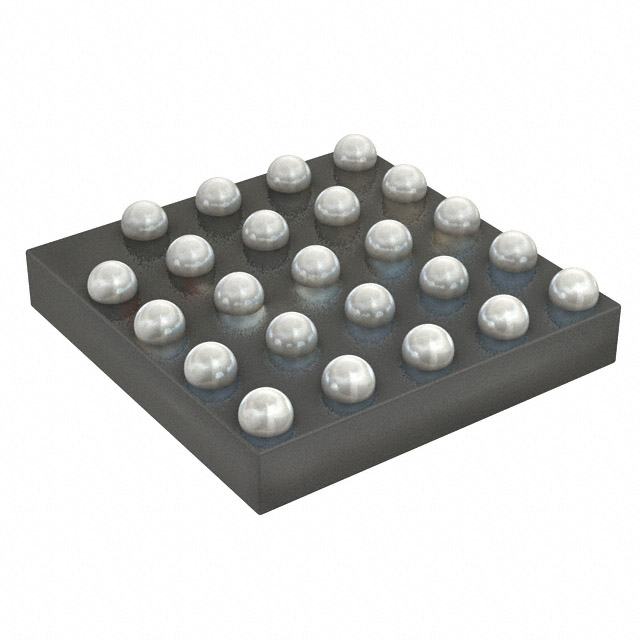

IP4035CX24/LF/P,13

Description：FILTER RC(PI) 1 KOHMS ESD SMD
Series：-
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR)

SKU:be0b1d3d5b97 Category: EMI/RFI Filters (LC, RC Networks) Brand: Nexperia USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER RC(PI) 1 KOHMS ESD SMD
Series：-
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR)
Type：Low Pass
Filter Order：2nd
Technology：RC (Pi)
Number of Channels：10
Center / Cutoff Frequency：-
Attenuation Value：25dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms)：1k
Values：R = 1kOhms (Total), C = 50pF (Total)
ESD Protection：Yes
Operating Temperature：-45°C ~ 85°C
Applications：Data Lines for Mobile Devices
Voltage - Rated：-
Mounting Type：Surface Mount
Package / Case：24-WFBGA, WLCSP
Size / Dimension：0.096" L x 0.095" W (2.45mm x 2.41mm)
Height：0.028" (0.70mm)
Current：7 mA
Grade：-
Qualification：-

Download product information

IP4035CX24/LF/P,13

Overview

The IP4035CX24/LF/P,13 is a second-order RC (Pi) EMI filter designed for data lines in mobile devices and other applications requiring electromagnetic interference suppression. It integrates low-pass filtering with ESD input protection compliant with IEC 61000-4-2 Level 4 standards. The component features a total resistance of 1kOhms and a total capacitance of 50pF. It operates within a compact package height of 0.70mm (0.028 inches).

Feature Summary

Integrates low-pass RC filtering with ESD protection capabilities.
Provides electromagnetic interference suppression for sensitive data lines.
Complies with IEC 61000-4-2 electrostatic discharge standards.

Applications

Mobile device data line protection
Electromagnetic interference suppression circuits
Consumer circuit signal integrity enhancement

Procurement Notes

Verify the specific suffix /P,13 against official Nexperia documentation to confirm tape and reel packaging specifications. Ensure the part number matches the exact electrical characteristics required for your design, as variations may exist within the product family. Cross-reference with authorized distributors for current availability status.

Selection Notes

Select this component when designing circuits that require combined ESD protection and high-frequency noise filtering on data interfaces. The integrated Pi-filter topology simplifies board layout by reducing component count. Verify that the 1kOhm series resistance and 50pF shunt capacitance align with the impedance and bandwidth requirements of the target application.

Part Context

This component belongs to Nexperia's portfolio of EMI/RFI filters and signal conditioning devices. It is categorized under consumer circuit protection solutions, specifically targeting portable electronics where space constraints and signal integrity are critical. The product line emphasizes compact form factors suitable for modern handheld devices.

Replacement Considerations

Consult official Nexperia substitution guides for verified alternatives. Generic equivalents may not match the specific IEC 61000-4-2 Level 4 compliance or the precise RC network values. Ensure any substitute maintains the same package dimensions and thermal characteristics.
