Product Detailed Parameters
- Description：FILTER RC(PI) 200 OHMS ESD SMD
- Series：-
- Mfr：Nexperia USA Inc.
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：10
- Center / Cutoff Frequency：-
- Attenuation Value：30dB @ 800MHz ~ 2.4GHz
- Resistance - Channel (Ohms)：200
- Values：R = 200Ohms (Total), C = 50pF (Total)
- ESD Protection：Yes
- Operating Temperature：-35°C ~ 85°C
- Applications：GSM, LAN, PCS, WAN
- Voltage - Rated：-
- Mounting Type：Surface Mount
- Package / Case：25-WFBGA, WLCSP
- Size / Dimension：0.095" L x 0.095" W (2.41mm x 2.41mm)
- Height：0.028" (0.70mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

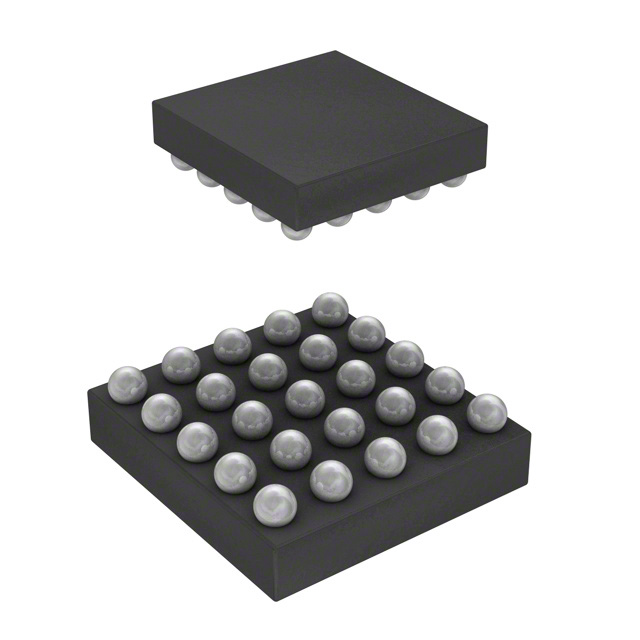

The IP4041CX25/LF/P,13 is an EMI/RFI filter manufactured by Nexperia USA Inc. It utilizes a Pi-network RC topology to suppress electromagnetic interference. The component features a total resistance of 200 Ohms and a total capacitance of 50pF. It is housed in a 25-WFBGA WLCSP package with dimensions of 2.41mm x 2.41mm. This surface-mount device is designed for signal line protection.
Feature Summary
- Provides EMI/RFI suppression using an RC Pi-network configuration
- Integrates low-pass filtering characteristics within a compact footprint
- Designed for surface-mount assembly on printed circuit boards
Applications
- Signal line filtering in electronic circuits
- Electromagnetic interference suppression applications
- Radio frequency interference mitigation
Procurement Notes
This specific part number is officially listed as obsolete and no longer manufactured by the supplier. Procurement should focus on verifying current availability through secondary markets or identifying approved replacement components from the manufacturer's recommended substitute list to ensure supply chain continuity.
Selection Notes
Designers requiring this component must account for its discontinued status. Selection processes should prioritize evaluating equivalent active parts that match the required 200 Ohm resistance and 50pF capacitance specifications while maintaining compatibility with the 25-WFBGA package constraints.
Part Context
The IP4041CX25/LF/P,13 belongs to the EMI/RFI Filters category, specifically within LC and RC Networks. It is produced by Nexperia USA Inc., formerly associated with NXP and Philips semiconductor lines. The component serves as a passive filtering solution for high-frequency noise reduction in sensitive electronic interfaces.
Replacement Considerations
Official sources indicate that MFR Recommended substitutes are available for this obsolete product. Engineers should consult the manufacturer's documentation for specific cross-reference part numbers to ensure functional equivalence.
