Product Detailed Parameters
- Description：FILTER RC(PI) 47 OHMSESD SMD
- Series：-
- Mfr：Nexperia USA Inc.
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：3
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：47, 100
- Values：R = 47Ohms, 100Ohms, C = 17pF (Total)
- ESD Protection：Yes
- Operating Temperature：-35°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount

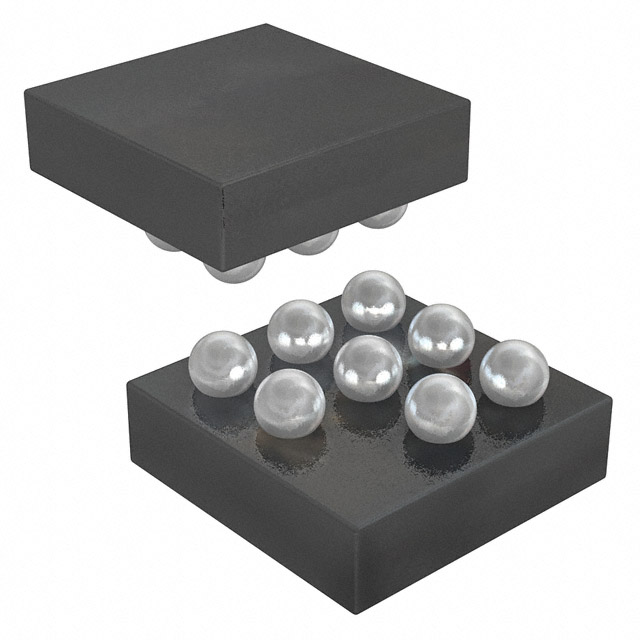

- Package / Case：8-WFBGA, WLCSP
- Size / Dimension：0.046" L x 0.046" W (1.16mm x 1.16mm)
- Height：0.026" (0.65mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview
The IP4366CX8/P,135 is an integrated SIM-card EMI filter and ESD protection device manufactured by Nexperia. It features a PI-filter RC network topology designed for signal integrity in high-speed data lines. The component provides three independent channels with specific resistance and capacitance values to attenuate electromagnetic interference while protecting against electrostatic discharge events compliant with IEC 61000-4-2 standards.
Feature Summary
- Integrates passive RC low-pass filtering with electrostatic discharge protection in a single compact package
- Provides dedicated shielding for SIM card interfaces against radio frequency interference
- Ensures signal integrity through optimized impedance matching and noise attenuation
Applications
- SIM card slot protection in mobile devices
- Embedded systems requiring EMI suppression on data lines
- Portable electronics with high-speed interface requirements
Procurement Notes
Verify the exact suffix P,135 corresponds to the WLCSP 8-WFBGA package configuration. Confirm RoHS compliance status and manufacturing date codes upon receipt. Ensure handling procedures account for the sensitivity of the WLCSP substrate during assembly processes.
Selection Notes
Select this component when simultaneous EMI filtering and ESD protection are required for SIM interfaces. The integrated design reduces board space compared to discrete solutions. Verify that the internal resistance and capacitance values align with the target data rate specifications of the connected SIM module.
Part Context
This part belongs to Nexperia's family of integrated SIM card passive filter arrays. It shares functional similarities with models like IP4064CX8 and IP4364CX8 but offers specific channel configurations tailored for modern mobile communication standards. The technology leverages advanced wafer-level packaging for miniaturization.
Replacement Considerations
Direct substitutes include IP4064CX8 and IP4364CX8 from the same manufacturer series. Verify pin compatibility and electrical parameter alignment before substitution. Alternative packages may require schematic redesign due to differing footprint dimensions.
