IPBT-105-H1-T-D-GP

Headers, Male Pins Overview

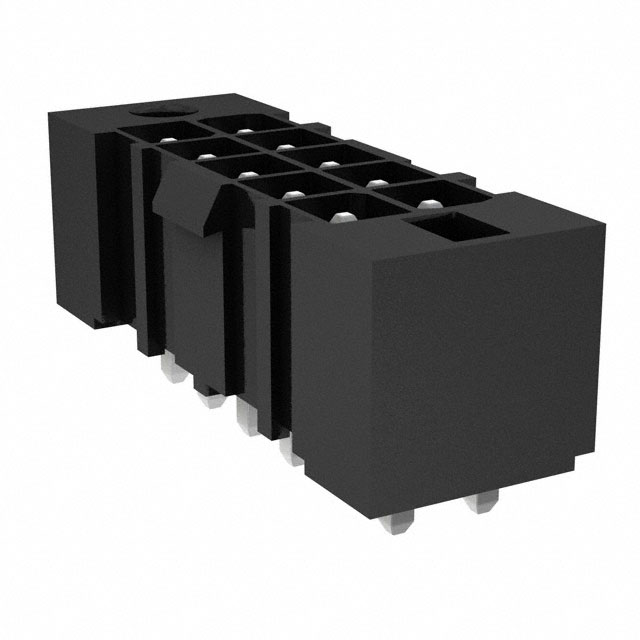

The IPBT-105-H1-T-D-GP is a vertical power header from Samtec's Power Mate® series, designed for board-to-board or wire-to-board connections. It features a .165" (4.20mm) pitch with 10 positions in a double-row configuration. The connector utilizes through-hole solder termination and includes a four-wall shroud for contact isolation. Rated for 400VAC and 565VDC, it operates within a temperature range of -55°C to +105°C. Constructed with liquid crystal polymer insulation and copper alloy contacts, the unit incorporates a latching system for secure mating.

Headers, Male Pins Feature Summary

• Features individually shrouded square posts for enhanced electrical isolation between contacts
• Incorporates a polarized latching system to ensure correct alignment and secure connection
• Utilizes liquid crystal polymer insulation rated UL94 V-0 for high thermal stability

Headers, Male Pins Applications

• High-power discrete wire interconnections on printed circuit boards
• Board-to-board power distribution requiring isolated terminals
• Industrial equipment power supply interfaces

Headers, Male Pins Procurement Notes

Verify that the specific part number suffix matches the required orientation and termination style. Confirm that the voltage and current ratings align with the application requirements. Check for RoHS compliance status if environmental regulations apply. Ensure the mounting peg option is included if mechanical support is needed. Review datasheet specifications for precise dimensional tolerances before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a .165 inch pitch is required for high-voltage applications up to 565VDC. Consider the double-row layout for increased pin density in a compact footprint. Evaluate the need for right-angle versus vertical configurations based on board space constraints. Assess whether the integrated latching mechanism provides sufficient retention force for the intended environment compared to non-latching alternatives.

Headers, Male Pins Part Context

This component belongs to the IPBT series within the Power Mate® family, which specializes in isolated power terminal headers. The series offers various pitch options and termination styles to accommodate diverse power delivery needs. The IPBT-105 variant specifically addresses applications requiring ten isolated power channels with robust mechanical retention and high dielectric strength.

Headers, Male Pins Replacement Considerations

Direct substitutes include other IPBT series headers with identical pitch and row count but different orientations, such as IPBT-105-H1-T-D-RA-GP for right-angle mounting. Cross-series replacements may require verifying pitch compatibility and shrouding requirements.
