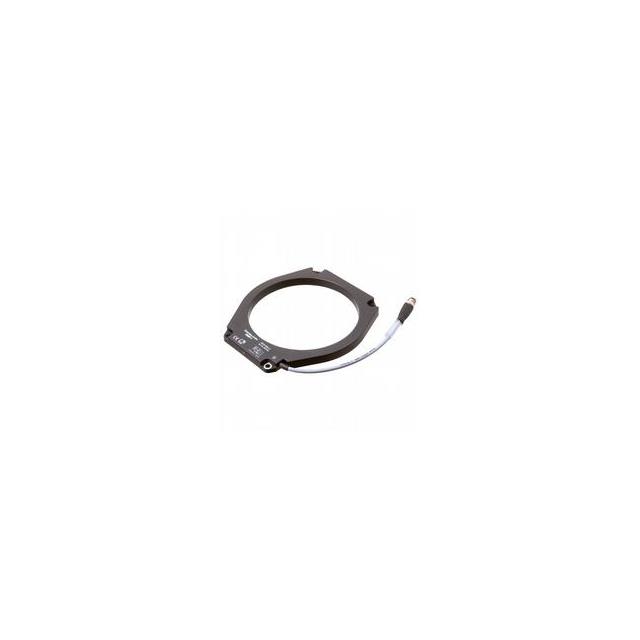

IQH1-F198-V1

Overview

The IQH1-F198-V1 is a high-frequency read/write device from the Pepperl+Fuchs IDENT series, designed for industrial RFID applications. It operates at 13.56 MHz and supports HF protocols including ISO 14443A/B, ISO 15693, and FeliCa. The unit features an integrated 2-port switch for network loop formation and supports multiple industrial Ethernet protocols such as PROFINET, EtherNet/IP, TCP/IP, and MODBUS TCP/IP. It serves as a gateway connecting RFID readers to PLCs or IT systems.

Feature Summary

• Supports multiple HF RFID standards including ISO 14443A/B, ISO 15693, and FeliCa
• Integrated 2-port switch enables network loop topology
• Compatible with major industrial Ethernet protocols like PROFINET and EtherNet/IP
• Modular design allows uniform operation of connected readers regardless of frequency

Applications

• Semi-finished goods tracing in manufacturing
• Integration with PLCs via industrial Ethernet
• Factory automation identification systems
• IT system connectivity for data exchange

Procurement Notes

Verify the specific firmware version and protocol support required for your target RFID tags (ISO 14443/15693/FeliCa). Confirm compatibility with your existing network infrastructure, specifically regarding PROFINET or EtherNet/IP requirements. Ensure the 2-port switch configuration meets your cabling topology needs. Check for any necessary licensing or software components for advanced data handling functions.

Selection Notes

Select this model if your application requires a versatile HF reader controller supporting multiple international standards. It is suitable for environments needing robust Ethernet connectivity and daisy-chained network topologies. Consider this unit when integrating diverse tag types into a unified control system. Evaluate the need for integrated switching capabilities versus external switches.

Part Context

This component belongs to the IDENTControl Compact series by Pepperl+Fuchs. These interfaces act as gateways between RFID hardware and higher-level control systems. The series is characterized by modular design and broad protocol support, facilitating easy integration into complex factory automation architectures.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing IDENTControl software and hardware configurations before considering alternative models.
