Product Detailed Parameters
- Description：IC PFC CTRLR CCM 66KHZ 8SOIC
- Series：-
- Mfr：Infineon Technologies
- Package：Tube
- Mode：Continuous Conduction (CCM)
- Frequency - Switching：66kHz
- Voltage - Supply：85 ~ 264VAC
- Operating Temperature：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Current - Startup：150 µA
- Grade：-
- Qualification：-
Download product information
Overview

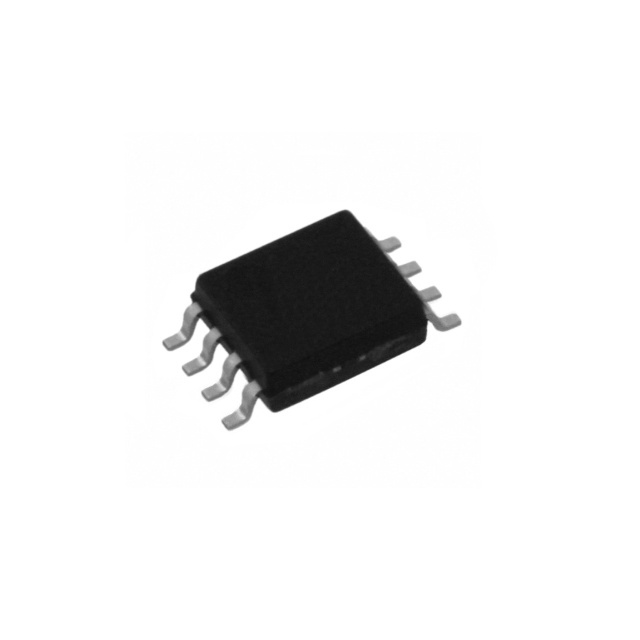

The IR11452SPBF is a Power Factor Correction (PFC) controller manufactured by Infineon Technologies, designed for continuous conduction mode (CCM) applications. It operates at a switching frequency of 66 kHz and features low quiescent current consumption of 75 uA. The device supports an extended operating temperature range from -40°C to +150°C and dissipates up to 976 mW of power. Packaged in an SOIC-8 surface-mount format, it includes ESD protection mechanisms. This component belongs to the PMIC category under Infineon's Green Package lineup.
Feature Summary
- One-cycle control architecture for PFC applications
- Low quiescent current operation for efficiency
- Integrated ESD protection
- Surface mount SOIC-8 packaging
Applications
- AC-DC power supplies
- External power adapters
- Power factor correction circuits
Procurement Notes
Verify component authenticity through authorized distributors or official manufacturer channels due to end-of-life status. Confirm RoHS compliance and package integrity upon receipt. Check datasheet revisions for any design-in updates. Ensure storage conditions meet humidity sensitivity requirements before assembly. Validate pinout compatibility with existing PCB layouts.
Selection Notes
Select this component for CCM PFC designs requiring fixed 66 kHz switching frequency. Consider thermal management capabilities given the 976 mW power dissipation rating. Evaluate system efficiency needs against the 75 uA quiescent current specification. Ensure input voltage ranges align with controller operational limits. Verify footprint compatibility with SOIC-8 land pattern.
Part Context
This part is part of Infineon's PFC controller portfolio, specifically utilizing one-cycle control technology. It falls under the broader PMIC classification within power management integrated circuits. The device represents a solution for improving power quality in AC-DC conversion systems while maintaining compact form factors through its surface-mount packaging.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. The IR1152SPBF appears related but lacks explicit substitution confirmation. Consult official replacement guides for verified alternatives.
