IR2-N06C2H

Power Line Filter Modules Overview

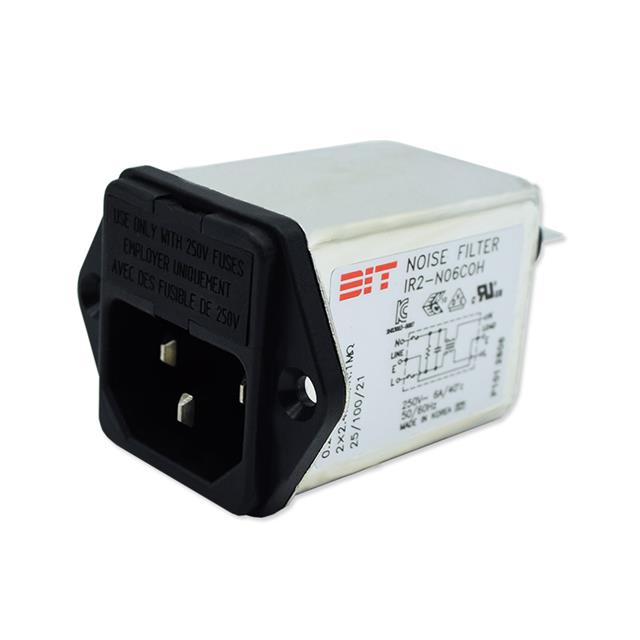

The IR2-N06C2H is a single-phase EMC/EMI line filter module manufactured by DIT. It features a 6 A current rating and supports voltages up to 250 VDC/VAC. The unit operates within a frequency range of 50 to 60 Hz and utilizes a single-stage filtering design. Physical integration is achieved via panel mounting with quick connect terminals, ensuring secure electrical connections for power line applications.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering capability
• Panel mount construction with quick connect terminals
• Compliance with IEC 320-C14 interface standards

Power Line Filter Modules Applications

• Power line filter modules
• Single-phase equipment protection
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the manufacturer designation as DIT or Dong Il Technology Ltd. Confirm the specific suffix C2H matches the required 6A rating and panel mount configuration. Ensure compatibility with IEC 320-C14 inlet standards before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase noise suppression at 6 Amperes. Verify voltage ratings align with the 250V DC/AC requirement. Ensure physical space accommodates the panel mount form factor and quick connect terminal style.

Power Line Filter Modules Part Context

This part belongs to the IR2 series of power line filter modules. It serves as an electromagnetic interference suppression device designed for AC/DC power inputs. The series typically includes variants with different current ratings and terminal configurations.

Power Line Filter Modules Replacement Considerations

The IR2-N06CDH is a related variant within the same product family. Verify if the CDH suffix indicates identical electrical performance or different terminal/mechanical specifications before substitution.
