IR3-N03C2H

Power Line Filter Modules Overview

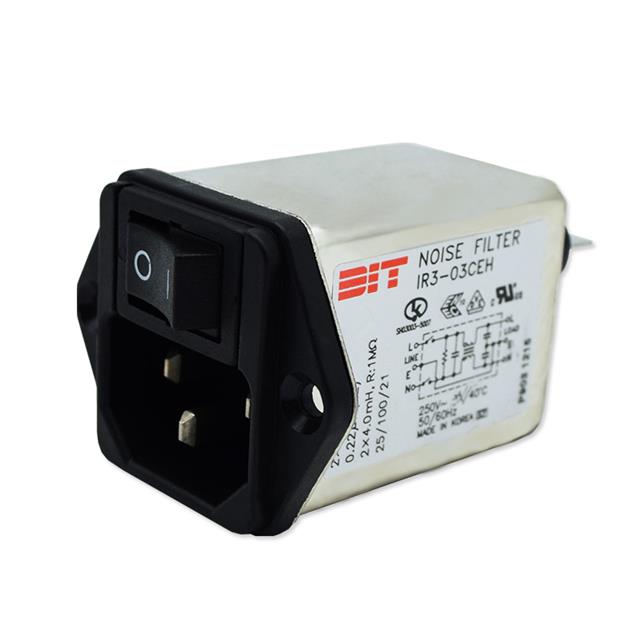

The IR3-N03C2H is a single-phase EMC/EMI line filter module manufactured by DIT. It features an IEC 320-C14 inlet and quick connect terminals for panel mounting. The component is rated for 3 A current at 250 VAC and operates within the 50 to 60 Hz frequency range. It utilizes a metal case to provide effective shielding against electromagnetic interference.

Power Line Filter Modules Feature Summary

• Integrates a double-pole power ON/OFF switch compliant with IEC 61058-1 standards
• Provides good shield effect through the use of a metal case enclosure
• Meets over voltage category II requirements per IEC 60664

Power Line Filter Modules Applications

• Single phase power line filtering
• EMC/EMI suppression in electronic equipment
• Panel mounted power inlet modules

Power Line Filter Modules Procurement Notes

Verify that the specific part number matches the required electrical ratings and mechanical interface before procurement. Confirm compliance with relevant safety standards such as IEC 61058-1 for the integrated switch and IEC 60664 for overvoltage categories. Ensure the metal case construction meets shielding requirements for the intended application environment.

Power Line Filter Modules Selection Notes

Select this component when a combined power inlet, switch, and EMI filter is required for single-phase applications. The 3 A rating and 250 VAC specification define the operational limits. Consider the quick connect terminal style and IEC 320-C14 inlet compatibility with downstream connectors during system design.

Power Line Filter Modules Part Context

This module belongs to the IR3 series of power line filter modules from DIT. Similar variants include the IR3-N03CDH and IR3-N06C2H, which offer different current ratings or housing configurations. These components are designed for integration into devices requiring certified power entry points with noise suppression capabilities.

Power Line Filter Modules Replacement Considerations

Cross-reference with IR3-N03CDH for similar specifications with potential housing differences. Verify that substitute parts maintain the same IEC 320-C14 inlet type and quick connect terminal configuration to ensure mechanical compatibility.
