IR3-N03CDH

Power Line Filter Modules Overview

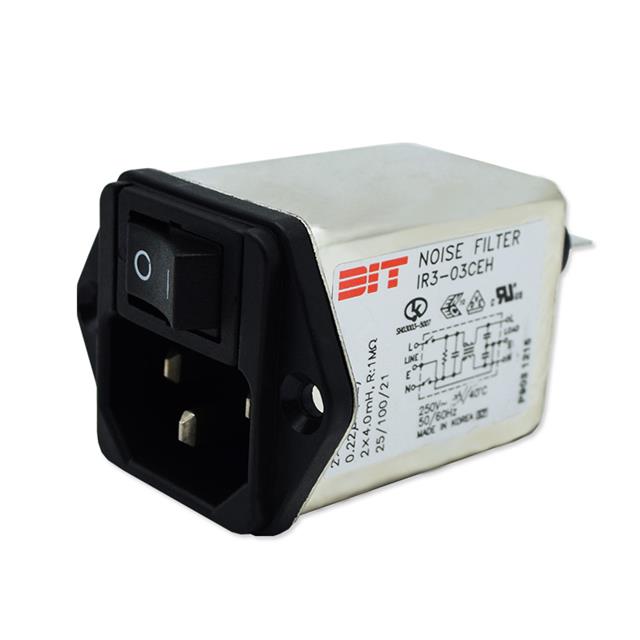

The IR3-N03CDH is a single-phase EMC/EMI line filter module manufactured by DIT. It features a double pole power ON/OFF switch compliant with IEC 61058-1 standards and utilizes a metal case for effective shielding. The unit meets the overvoltage category II requirements of IEC 60664. Electrical specifications include a rated current of 3 A, a voltage rating of 250 V AC, and operation at frequencies between 50 Hz and 60 Hz. The component employs a single-stage filtering design and connects via an IEC 320-C14 inlet with quick connect terminals.

Power Line Filter Modules Feature Summary

• Integrates a double pole power ON/OFF switch that complies with IEC 61058-1 standards
• Provides effective electromagnetic shielding through the use of a metal case construction
• Meets overvoltage category II safety requirements as defined by IEC 60664

Power Line Filter Modules Applications

• Single-phase equipment requiring EMI/EMC line filtering
• Devices utilizing IEC 320-C14 power inlet connections
• Applications necessitating integrated power switching functionality

Power Line Filter Modules Procurement Notes

Verify the specific suffix codes against official DIT documentation to confirm exact terminal configurations and compliance certifications. Ensure the selected variant matches the required current and voltage ratings for the target application. Cross-reference the manufacturer part number with authorized distributors to confirm availability and authenticity before procurement.

Power Line Filter Modules Selection Notes

Select this component when a combined filtering and switching solution is required for single-phase AC circuits. Consider the metal enclosure for environments needing enhanced shielding. Verify compatibility with the IEC 320-C14 inlet standard and ensure the 3 A current rating aligns with the load requirements. Confirm adherence to IEC 61058-1 switch standards if regulatory compliance is mandatory.

Power Line Filter Modules Part Context

This model belongs to the IR3 series of power line filter modules from DIT (Dong Il Technology). The series typically integrates filtering capabilities with power switching functions in a compact form factor. These modules are designed to reduce conducted emissions while providing a means for safe power isolation in electronic equipment.

Power Line Filter Modules Replacement Considerations

Consult official DIT documentation for direct substitutes within the IR3 series. Verify that any alternative maintains the same IEC 320-C14 interface, 3 A rating, and double-pole switch configuration to ensure mechanical and electrical compatibility.
