IR3-N06CDH

Power Line Filter Modules Overview

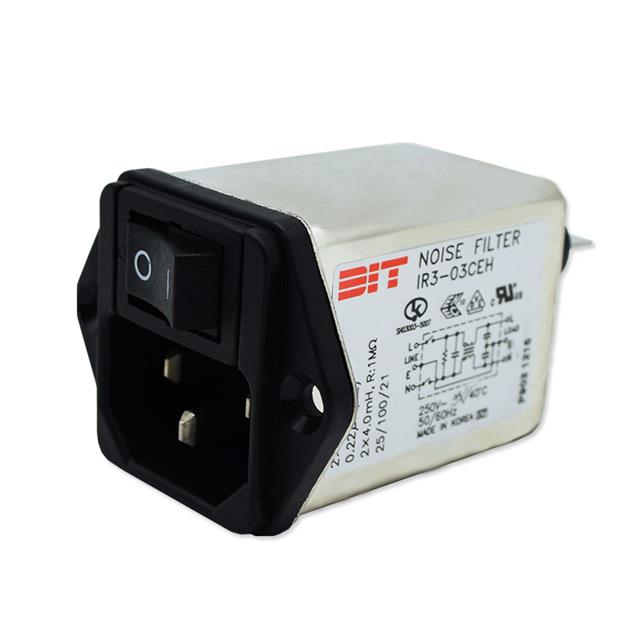

The IR3-N06CDH is a single-phase EMC/EMI line filter module manufactured by DIT. It supports a current rating of 6 A and operates at voltages up to 250 V AC or DC. The unit is designed for 50 ~ 60 Hz frequencies and features a single-stage filtering configuration. Electrical connections utilize Quick Connect terminals, while the input interface adheres to the IEC 320-C14 standard. The component is constructed with a metal case to ensure effective shielding.

Power Line Filter Modules Feature Summary

• Integrates a double pole power ON/OFF switch compliant with IEC 61058-1 standards
• Provides effective electromagnetic shielding through a metal case construction
• Meets overvoltage category II requirements as defined by IEC 60664

Power Line Filter Modules Applications

• Single-phase power line noise suppression
• EMC/EMI filtration in electronic equipment
• Panel-mounted power supply protection

Power Line Filter Modules Procurement Notes

Verify that the specific part number matches the required electrical ratings and mechanical interface before procurement. Confirm compliance with relevant safety standards such as IEC 61058-1 and IEC 60664 for the intended application environment. Ensure the metal casing and quick connect terminals align with system integration requirements.

Power Line Filter Modules Selection Notes

Select this component when a combined filter and switch solution is required for single-phase applications. The IEC 320-C14 interface ensures compatibility with standard power cords. The metal enclosure provides necessary shielding for sensitive electronics operating within the specified voltage and current limits.

Power Line Filter Modules Part Context

This model belongs to the IR3 series of power line filter modules from Dong Il Technology (DIT). The series includes variants with different current ratings and terminal configurations. The IR3-N06CDH specifically addresses needs for integrated switching and filtering in compact panel-mount designs.

Power Line Filter Modules Replacement Considerations

Cross-reference with other single-phase filters featuring IEC 320-C14 inputs and 6 A ratings. Verify that substitute components maintain equivalent shielding effectiveness and switch compliance with IEC 61058-1.

Power Line Filter Modules FAQ

What type of switch is integrated into this filter?

It features a double pole power ON/OFF switch that complies with IEC 61058-1.

How is electromagnetic interference managed in this unit?

Good shield effect is achieved by using a metal case construction.
