IR3-N10C2H

Power Line Filter Modules Overview

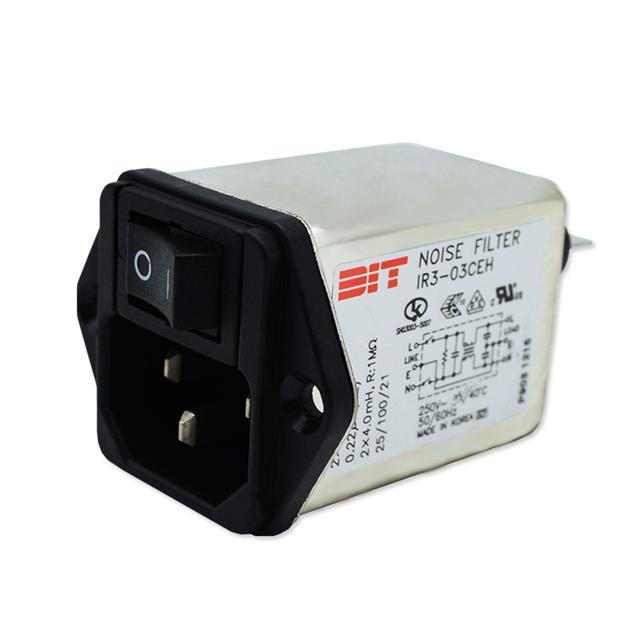

The DIT IR3-N10C2H is a single-phase EMC/EMI line filter module designed for panel mounting. It features an IEC C14 inlet and supports a rated current of 10A with voltage ratings of 250V AC and 250V DC. The unit operates within a frequency range of 50 to 60Hz and functions in temperatures from -25°C to 85°C. It includes a double-pole power ON/OFF switch compliant with IEC 61058-1 and utilizes a metal case for effective shielding. The component meets overvoltage category II standards per IEC 60664.

Power Line Filter Modules Feature Summary

• Integrates a double-pole power ON/OFF switch compliant with IEC 61058-1
• Utilizes a metal case to provide effective electromagnetic shielding
• Meets overvoltage category II requirements according to IEC 60664

Power Line Filter Modules Applications

• Medical equipment
• Industrial control systems
• Electronic instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific approval agency markings (CSA, ENEC, UR, VDE) required for your target market before procurement. Confirm that the IEC C14 inlet configuration matches your power cord specifications. Ensure the panel cutout dimensions accommodate the physical size of the module. Check that the operating temperature range of -25°C to 85°C aligns with your environmental conditions. Validate the 10A current rating against your maximum load requirements.

Power Line Filter Modules Selection Notes

Select this component when a combined filter and switch solution is needed for single-phase applications. It is suitable for environments requiring robust shielding due to its metal construction. Consider this part if compliance with multiple international safety agencies is necessary. The integrated switch simplifies design by reducing component count. Ensure the 250V AC/DC rating fits the system voltage profile.

Power Line Filter Modules Part Context

This module belongs to DIT's power line filter series, which combines filtering capabilities with switching functions. These units are typically used in applications where space efficiency and regulatory compliance are critical. The IR3-N10C2H specifically addresses noise suppression while providing user access for power control. It represents a standard solution for integrating EMI protection into compact electronic enclosures.

Power Line Filter Modules Replacement Considerations

Cross-reference with other single-stage, 10A IEC inlet filters featuring integrated switches. Verify that any substitute maintains the same metal housing for equivalent shielding performance. Ensure the replacement meets the same IEC 61058-1 switch standard and IEC 60664 overvoltage category. Confirm compatibility with CSA, ENEC, UR, and VDE approvals if those certifications are mandatory for the end product.

Power Line Filter Modules FAQ

What type of connector does the IR3-N3-N10C2H use?

It uses an IEC C14 inlet for power connection.

Is the IR3-N10C2H suitable for medical applications?

Yes, it is documented as suitable for medical equipment applications.

Does the module include a power switch?

Yes, it integrates a double-pole power ON/OFF switch compliant with IEC 61058-1.
