IR38063MIB01TRP

$3.50

Description：IC REG BUCK ADJ 25A IQFN-34-900
Series：SupIRBuck®
Mfr：Infineon Technologies
Package：Tape & Reel (TR)

SKU:4990cd1a4ad3 Category: Voltage Regulators - DC DC Switching Regulators Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IR38063MIB01TRP is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC REG BUCK ADJ 25A IQFN-34-900. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for IR38063MIB01TRP

Description：IC REG BUCK ADJ 25A IQFN-34-900
Series：SupIRBuck®
Mfr：Infineon Technologies
Package：Tape & Reel (TR)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：1.2V
Voltage - Input (Max)：21V
Voltage - Output (Min/Fixed)：0.5V
Voltage - Output (Max)：18.38V
Current - Output：25A
Frequency - Switching：400kHz ~ 1.5MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

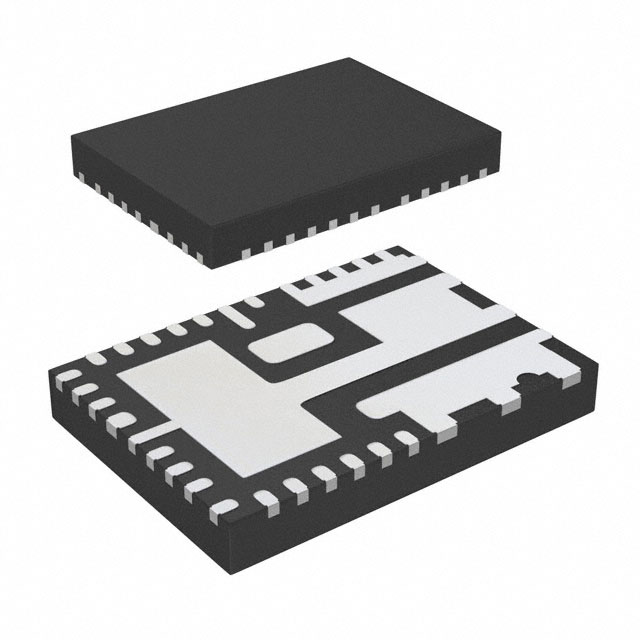

Package / Case：34-PowerVFQFN
Supplier Device Package：PG-IQFN-34-900
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for IR38063MIB01TRP

IR38063MIB01TRP

Voltage Regulators - DC DC Switching Regulators Overview

The IR38063MIB01TRP is a highly integrated single-phase synchronous buck regulator from Infineon Technologies, part of the SupIRBuck series. It delivers up to 25A output current with an input voltage range of 1.2V to 21V and adjustable output voltage from 0.5V to 18.38V. The device features a fixed switching frequency range of 400kHz to 1.5MHz and operates within a junction temperature range of -40°C to 125°C. Packaged in a 34-PowerVFQFN (PG-IQFN-34-900) surface-mount package, it includes an internal bias LDO and supports PMBus interface for digital control.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates high-side and low-side power MOSFETs with driver circuitry in a compact footprint
Supports digital configuration and monitoring via PMBus interface
Includes internal bias LDO for simplified external component requirements
Provides comprehensive protection features including over-current and thermal shutdown

Voltage Regulators - DC DC Switching Regulators Applications

Point-of-load regulation for CPUs and GPUs in servers
Power delivery for ASICs and FPGAs in data centers
Industrial equipment requiring high-density DC-DC conversion
Telecommunications infrastructure power systems

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix MIB01 against official Infineon documentation to confirm pinout and feature set variations. Confirm availability status as supply conditions may vary by region. Ensure compatibility with existing PCB layout and thermal management design before procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a single-phase solution delivering up to 25A is required with digital control capabilities. Compare against higher current multi-phase alternatives if load demands exceed 25A. Verify that the 34-pin PQFN package fits the mechanical constraints of the target application board.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the Infineon SupIRBuck family of integrated power stages. It shares architectural similarities with other IR380xx series devices but differs in current rating and package type. The IR38063 variant specifically targets applications needing robust single-phase performance with digital interface support.
