IR3827MTRPBF

Voltage Regulators - DC DC Switching Regulators Overview

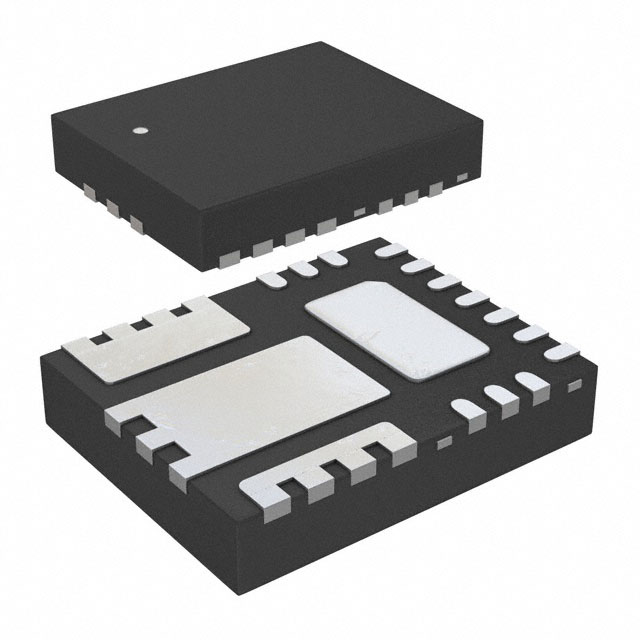

The IR3827MTRPBF is a synchronous buck switching regulator IC from Infineon Technologies, part of the SupIRBuck series. It delivers an adjustable output voltage ranging from 0.6V to 18.06V with a maximum continuous output current of 6A. The device operates within an input voltage range of 5.5V to 21V and supports programmable switching frequencies between 300kHz and 1.2MHz. Housed in a compact 17-PowerVQFN package (4x5mm), it functions as a single-output positive regulator designed for surface-mount installation across an industrial temperature range of -40°C to 125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrates high-side and low-side power MOSFETs with a synchronous rectification controller for enhanced efficiency.
• Features a wide adjustable switching frequency range to optimize external component size and transient response.
• Includes comprehensive protection mechanisms such as over-current protection and thermal shutdown.

Voltage Regulators - DC DC Switching Regulators Applications

• Point-of-load regulation for data processing systems
• Industrial equipment power distribution
• Communication infrastructure power supplies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity through authorized distributors due to availability constraints. Confirm package markings match the 17-PowerVQFN specification. Check datasheet revisions for any parameter updates. Ensure storage conditions comply with moisture sensitivity level requirements before reflow soldering.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact, high-efficiency single-phase solution is required for inputs up to 21V. Compare against higher current variants like the IR3838 if load demands exceed 6A. Evaluate thermal performance based on PCB copper area and ambient conditions. Consider the fixed-frequency alternative if precise frequency synchronization is not needed.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the SupIRBuck family, which integrates power stages into small packages to reduce solution footprint. It serves as a standalone regulator suitable for applications requiring minimal external components compared to discrete solutions or multi-phase controllers.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

The IR3820MTR1PBF is documented as a parameter-equivalent replacement. Verify pin compatibility and thermal characteristics before substitution.
