IRMCF183MTR

Overview

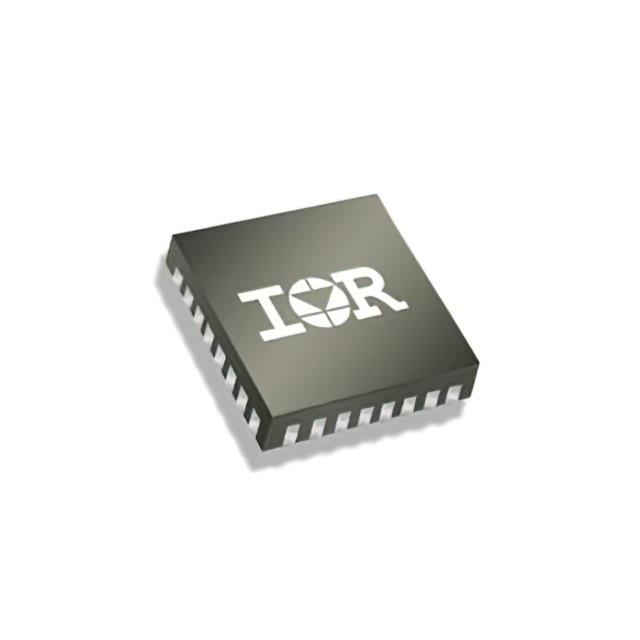

The IRMCF183MTR is a motor controller and driver IC from Infineon Technologies, part of the iMOTION series. It integrates an MCE microcontroller with IGBT technology for AC, DC, induction, and synchronous motors. The device operates on a 3V to 3.6V supply voltage and features an RS-232 interface. It provides three half-bridge pre-drivers for commutation and direction management. The component is housed in a 32-WFQFN package with exposed pad, measuring 5x5 mm. It supports surface mount installation and functions within a temperature range of -40°C to 125°C.

Feature Summary

• Integrates MCE microcontroller with IGBT technology for comprehensive motor control
• Supports AC, DC, induction, and synchronous motor types
• Includes three half-bridge pre-drivers for commutation and direction management
• Features RS-232 communication interface

Applications

• Motor drive systems requiring integrated control and driving capabilities
• Applications utilizing IGBT-based power stages
• Systems needing RS-232 connectivity for configuration or monitoring

Procurement Notes

Verify component authenticity through authorized distributors as the part is marked End-of-Life. Confirm package integrity and pin alignment for the 32-QFN form factor. Check for moisture sensitivity level compliance prior to soldering. Ensure design compatibility with the specified 3V to 3.6V operating voltage range. Review official documentation for any specific handling requirements associated with discontinued inventory.

Selection Notes

Select this component for designs requiring an integrated solution combining control logic and power driving for IGBT applications. Consider the 32-QFN footprint for space-constrained layouts. Verify that the system voltage aligns with the 3V to 3.6V specification. Evaluate the RS-232 interface against available communication protocols. Assess thermal performance within the -40°C to 125°C operational envelope.

Part Context

This component belongs to Infineon's iMOTION family, which focuses on integrated motion control solutions. The IRMCF183 variant specifically targets applications needing combined microcontroller and driver functionality. It utilizes IGBT technology for power switching. The series emphasizes compact integration for various motor types including AC and DC variants.

Replacement Considerations

No public confirmed substitute part numbers are available.
