Product Detailed Parameters
- Description：IC MOTOR DRIVER 3V-3.6V 32QFN
- Series：iMOTION™
- Mfr：Infineon Technologies
- Package：Cut Tape (CT)
- Motor Type - Stepper：-
- Motor Type - AC, DC：AC, Synchronous
- Function：Controller - Commutation, Direction Management
- Output Configuration：Pre-Driver - Half Bridge (3)
- Interface：I2C, RS-232
- Technology：Power MOSFET
- Step Resolution：-
- Applications：Appliance
- Current - Output：-
- Voltage - Supply：3V ~ 3.6V
- Voltage - Load：-
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount

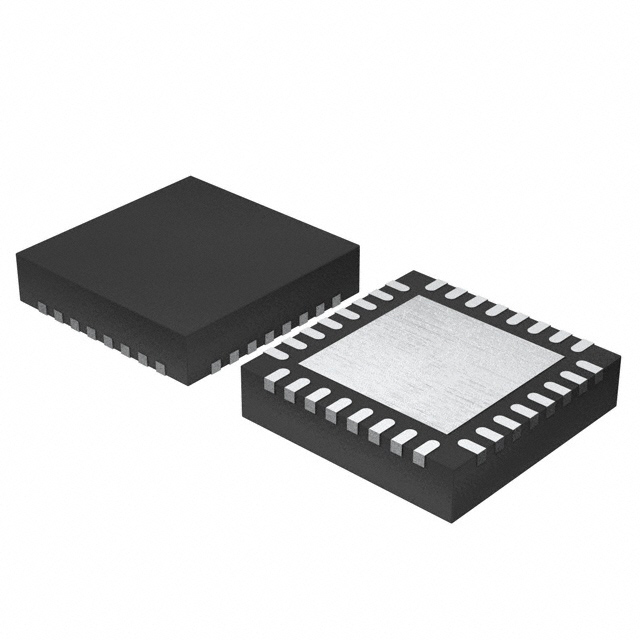

- Package / Case：32-WFQFN Exposed Pad
- Supplier Device Package：32-QFN
- Grade：-
- Qualification：-
Download product information
Overview
The IRMCK099MTR is a motion control ASIC from Infineon's imotion series, designed for sensorless permanent magnet motor control. It features a Tiny Motion Control Engine (TinyMCE) operating at frequencies up to 100 MHz. The device integrates 16 KB OTP memory and 12 KB program RAM. It supports I²C and RS-232 interfaces with a supply voltage range of 3 V to 3.6 V. Packaged in a 32-QFN, it operates between -40 °C and 125 °C.
Feature Summary
- Integrates a flexible Tiny Motion Control Engine for sensorless Field Oriented Control of permanent magnet motors using single or leg shunt current feedback.
- Includes internal hardware peripherals such as an A/D converter, analog amplifiers, overcurrent comparator, watchdog timer, and internal oscillator to minimize external components.
- Features a standby power mode to enhance overall system efficiency and strong startup tools for rapid configuration without programming.
- Supports JTAG programming ports and dual-channel analog outputs for debugging purposes.
Applications
- Inverterized appliance motor control
- Pump and fan drives
- Drone propulsion systems
Procurement Notes
Verify the specific suffix MTR indicates tape and reel packaging when sourcing. Confirm component availability status as production data may indicate end-of-life conditions. Ensure compatibility with existing firmware environments provided by the manufacturer. Check for moisture sensitivity handling requirements during storage and assembly processes.
Selection Notes
Select this component for applications requiring a low-cost, high-performance one-chip solution for advanced inverterized motor control. It is suitable for designs needing sensorless FOC implementation across the full speed range. Consider its integrated analog peripherals for reducing bill of materials complexity in compact form factors.
Part Context
The IRMCK099MTR belongs to the imotion series, representing a generation of International Rectifier integrated circuits designed primarily for appliance applications. Unlike traditional microcontrollers, it provides built-in closed-loop sensorless control algorithms via the TinyMCE architecture.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence if considering alternative motion control ASICs from other manufacturers.
