IS-0242H2

Power Line Filter Modules Overview

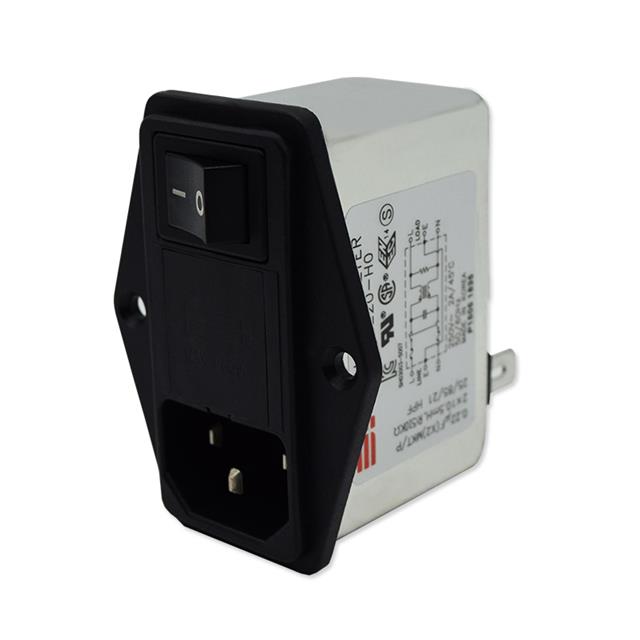

The IS-0242H2 is a single-phase EMC/EMI line filter module manufactured by DIT. It features an IEC 320-C14 inlet and supports a current rating of 2 A with voltage ratings of 250 V AC. The unit operates at frequencies between 50 Hz and 60 Hz and utilizes a single-stage filtering design. Physical connections are established via quick connect terminals, while the housing provides shielding effects through its metal case construction.

Power Line Filter Modules Feature Summary

• Integrates a fuse holder and double pole power ON/OFF switch within the module
• Provides effective electromagnetic interference shielding using a metal case enclosure
• Complies with over voltage category II standards as defined in EC 60664

Power Line Filter Modules Applications

• Single-phase equipment requiring EMI suppression
• Applications necessitating integrated power switching and fusing
• Devices requiring compliance with Category II overvoltage protection standards

Power Line Filter Modules Procurement Notes

Verify that the specific batch matches the manufacturer's datasheet specifications for current and voltage ratings. Confirm RoHS compliance status if required by project regulations. Ensure the quick connect terminal type aligns with existing wiring harnesses. Validate that the metal case dimensions fit the intended enclosure space without obstruction.

Power Line Filter Modules Selection Notes

Select this component when a combined solution for filtering, switching, and fusing is required for single-phase inputs. The IEC C14 inlet ensures compatibility with standard power cords. Consider the metal casing for environments where electromagnetic shielding is critical. Verify that the 2 A rating meets the maximum load requirements of the downstream circuitry.

Power Line Filter Modules Part Context

This model belongs to the DIT power line filter module series. It serves as an integrated interface component combining filtering capabilities with basic power control functions. The design targets applications needing compact solutions for electromagnetic compatibility and safety switching in low-power single-phase systems.

Power Line Filter Modules Replacement Considerations

Cross-reference with IQ-0242H2 for similar functional attributes. Verify pinout compatibility and mounting constraints before substitution. Ensure replacement units meet identical electrical ratings and regulatory certifications.
