IS-0642H2

Power Line Filter Modules Overview

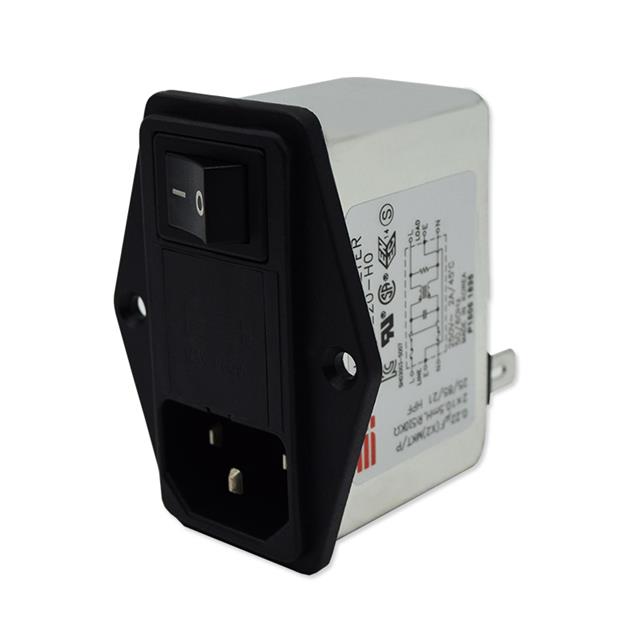

The IS-0642H2 is a single-phase EMC/EMI line filter module manufactured by DIT. It features a rated current of 6 A and supports both 250 V AC and 250 V DC voltage ratings. The unit operates at frequencies between 50 Hz and 60 Hz. It utilizes an IEC 320-C14 inlet connector and quick connect terminals for installation.

Power Line Filter Modules Feature Summary

• Integrates a fuse holder and a double-pole power ON/OFF switch
• Provides effective electromagnetic shielding through a metal case construction
• Complies with overvoltage category II requirements per IEC 60664 standards

Power Line Filter Modules Applications

• General purpose electronic equipment filtering
• Single-phase power supply input protection
• Industrial control system EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct terminal configuration and certification status. Confirm that the IEC 320-C14 inlet compatibility matches the target power cord specifications. Check for any regional safety approval variations that may affect deployment in regulated markets.

Power Line Filter Modules Selection Notes

Select this component when a combined filtering, switching, and fusing solution is required for single-phase applications. Ensure the 6 A current rating aligns with the maximum load requirements. The metal enclosure design is suitable for environments requiring enhanced electromagnetic interference shielding compared to plastic alternatives.

Power Line Filter Modules Part Context

This model belongs to the DIT power line filter module series designed for AC/DC input stages. It consolidates multiple protection functions into a single compact unit, reducing board space and assembly complexity. The product targets applications needing robust noise attenuation and manual power isolation capabilities.

Power Line Filter Modules Replacement Considerations

Cross-reference with IP-0642H2 or IQ-0642H2 variants from Dong Il Technology if equivalent mechanical and electrical specifications are required. Verify pinout and mounting hole dimensions before substitution to ensure physical compatibility.
