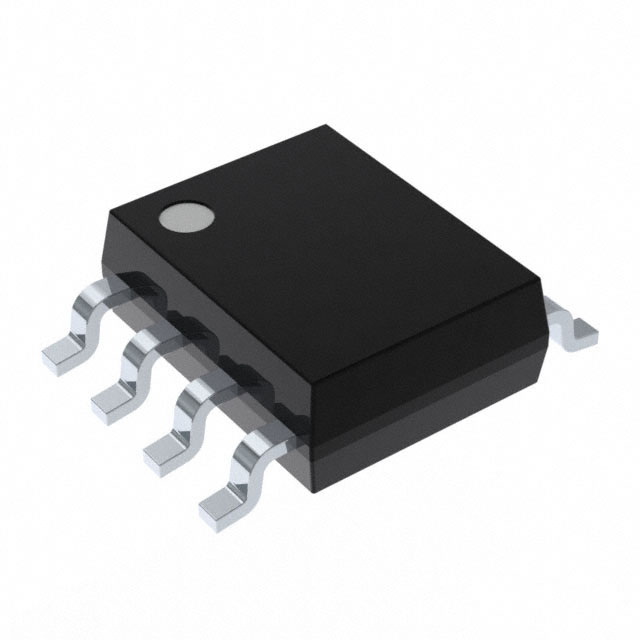

IS25WP016-JBLE

Description：IC FLASH 16MBIT SPI/QUAD 8SOIC
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tube

SKU:13a008b91191 Category: Memory IC Brand: ISSI, Integrated Silicon Solution Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IS25WP016-JBLE is listed in the Memory IC range at ChipApex. The manufacturer field lists ISSI, Integrated Silicon Solution Inc. Its product description is IC FLASH 16MBIT SPI/QUAD 8SOIC. Review the specifications below when checking this part for your BOM.

Memory IC specifications for IS25WP016-JBLE

Description：IC FLASH 16MBIT SPI/QUAD 8SOIC
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tube
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：16Mbit
Memory Organization：2M x 8
Memory Interface：SPI - Quad I/O, QPI
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：800µs
Voltage - Supply：1.65V ~ 1.95V
Operating Temperature：-40°C ~ 105°C (TA)
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.209", 5.30mm Width)
Supplier Device Package：8-SOIC
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for IS25WP016-JBLE

IS25WP016-JBLE

Memory IC Overview

The IS25WP016-JBLE is a 16 Mbit (2 Mbyte) NOR flash memory device manufactured by ISSI. It operates on a single 1.65V to 1.95V voltage supply and features a 133 MHz multi-I/O SPI interface with Quad I/O QPI DTR support. The device utilizes an 8-pin SOIC 208mil package and supports standard SPI, Dual/Quad I/O, and QPI modes for high-performance data access.

Memory IC Feature Summary

Supports high-speed serial communication via SPI, Dual/Quad I/O, and QPI interfaces with DTR capability.
Features flexible memory architecture allowing sector, block, or chip erase operations with program/erase suspend and resume.
Includes advanced security protection mechanisms such as hardware/software write protection and dedicated OTP security areas.

Memory IC Applications

Systems requiring limited space and low pin count storage solutions
Execute In Place (XIP) operation applications
Portable devices requiring low power consumption

Memory IC Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm package type and availability status. Confirm that the component meets all required environmental and electrical specifications for the intended application before finalizing procurement decisions.

Memory IC Selection Notes

Select this component when a 16 Mbit capacity is required within an 8-pin SOIC 208mil footprint. Ensure the system design accommodates the 1.65V to 1.95V operating voltage range and supports the necessary SPI/QPI interface protocols for optimal performance.

Memory IC Part Context

This part belongs to the IS25WP series of 1.8V Serial Flash Memories from ISSI. The series includes variants with different densities such as 2Mbit, 4Mbit, and 8Mbit, sharing similar interface capabilities and architectural features while differing in storage capacity and specific package options.
