IS25WP032D-JKLE

$0.94

Description：IC FLASH 32MBIT SPI/QUAD 8WSON
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tray

SKU:61ccd0e7e34b Category: Memory IC Brand: ISSI, Integrated Silicon Solution Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IS25WP032D-JKLE is listed in the Memory IC range at ChipApex. The manufacturer field lists ISSI, Integrated Silicon Solution Inc. Its product description is IC FLASH 32MBIT SPI/QUAD 8WSON. Review the specifications below when checking this part for your BOM.

Memory IC specifications for IS25WP032D-JKLE

Description：IC FLASH 32MBIT SPI/QUAD 8WSON
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tray
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：32Mbit
Memory Organization：4M x 8
Memory Interface：SPI - Quad I/O, QPI, DTR
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：800µs
Voltage - Supply：1.65V ~ 1.95V
Operating Temperature：-40°C ~ 105°C (TA)
Mounting Type：Surface Mount

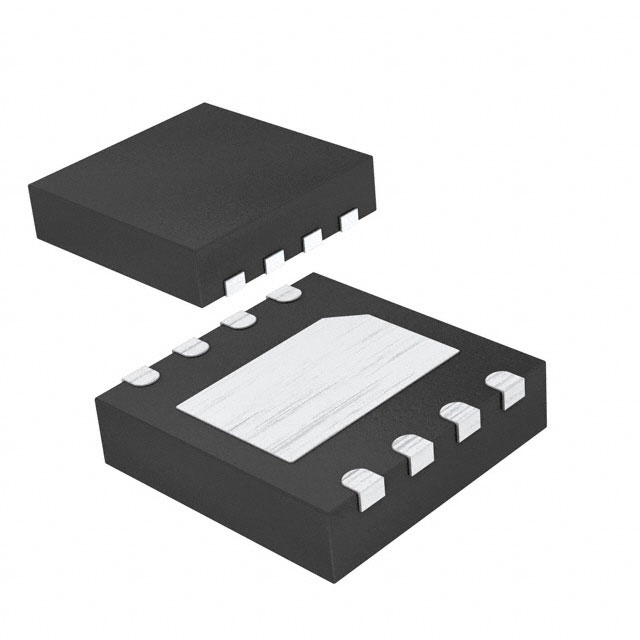

Package / Case：8-WDFN Exposed Pad
Supplier Device Package：8-WSON (6x5)
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for IS25WP032D-JKLE

IS25WP032D-JKLE

Memory IC Overview

The IS25WP032D-JKLE is a 32Mbit (4M x 8) NOR flash memory device from ISSI, operating on a single 1.8V supply voltage. It features a high-speed Quad SPI interface with QPI and DTR modes, supporting clock frequencies up to 166MHz in standard I/O and 80MHz in double data rate configurations. The component utilizes an 8-pin WSON package and supports extended industrial temperature ranges of -40°C to +105°C.

Memory IC Feature Summary

Supports Double Data Rate (DTR/DDR) interface modes for enhanced throughput
Enables Execute In Place (XIP) operations via QPI mode
Includes advanced security protection with user-lockable OTP bits
Features configurable drive strength and selectable dummy cycles

Memory IC Applications

Automotive instrument clusters
Industrial controls
Medical devices
Smart grid systems

Memory IC Procurement Notes

Verify the specific suffix JKLE against official datasheets to confirm pinout and package dimensions. Confirm that the 1.8V supply requirement aligns with your system design. Check for moisture sensitivity levels and reflow soldering profiles before integration. Ensure compatibility with existing firmware regarding SFDP support and instruction sets.

Memory IC Selection Notes

Select this part when a low-voltage 1.8V operation is required for the 32Mbit density. It is suitable for designs needing high read speeds via DTR or QPI modes. Consider the WSON-8 package for space-constrained PCB layouts. Verify that the extended temperature range meets environmental requirements.

Memory IC Part Context

This component belongs to the IS25WP series of 1.8V serial flash memories. It shares architectural similarities with the IS25LP series but operates at a lower voltage. The family offers densities ranging from 512Kb to 2Gb, providing scalable storage solutions for various embedded applications.
