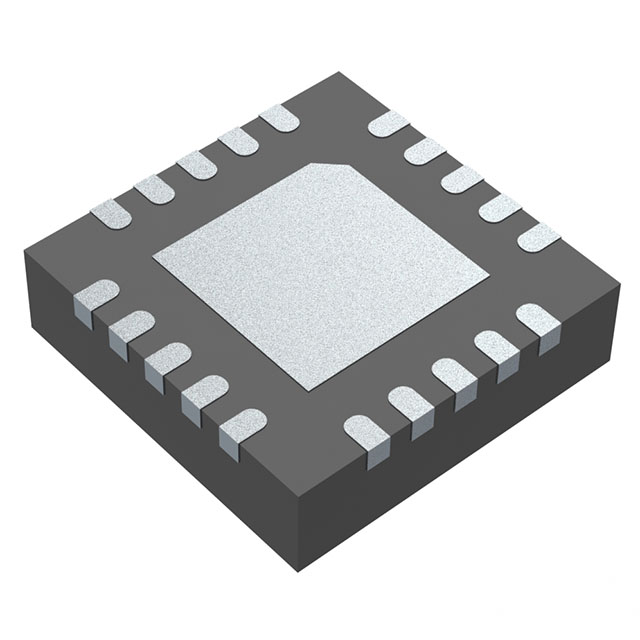

IS31FL3205-QFLS4-TR

$1.88

Description：IC LED DRVR LIN PWM 38MA 20QFN
Series：-
Mfr：Lumissil Microsystems
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9c64d67a29e8 Category: LED Drivers IC Brand: Lumissil Microsystems

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC LED DRVR LIN PWM 38MA 20QFN
Series：-
Mfr：Lumissil Microsystems
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Linear
Topology：Constant Current
Internal Switch(s)：No
Number of Outputs：12
Voltage - Supply (Min)：2.7V
Voltage - Supply (Max)：5.5V
Voltage - Output：-
Current - Output / Channel：38mA
Frequency：-
Dimming：PWM
Applications：LED Lighting
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Package / Case：20-WFQFN Exposed Pad
Supplier Device Package：20-QFN (3x3)
Grade：-
Qualification：-

Download product information

IS31FL3205-QFLS4-TR

Overview

The IS31FL3205-QFLS4-TR is a 12-channel linear LED driver IC manufactured by Lumissil Microsystems. It features selectable PWM frequency and operates within an input voltage range of 2.7 V to 5.5 V. The device provides constant current output with a maximum sink current of 38 mA per channel. It is housed in a QFN-20 package measuring 3.0 mm x 3.0 mm. The component supports surface mount technology and functions across a temperature range of -40°C to +125°C.

Feature Summary

Provides 12 independent constant current outputs for precise LED control
Supports selectable PWM dimming frequencies for flexible lighting applications
Integrates linear regulation for efficient current sinking

Applications

LED backlighting systems
General LED illumination circuits
Portable electronic display drivers

Procurement Notes

Verify the complete part number including the suffix to ensure correct packaging and specifications. Confirm RoHS compliance status through official documentation before integration. Check for specific manufacturing lot requirements if applicable to your production standards. Ensure compatibility with your PCB footprint design for the QFN-20 package.

Selection Notes

Select this component when a high channel count is required in a compact form factor. The 38 mA output capability suits standard indicator and low-power lighting LEDs. Consider the thermal performance of the QFN-20 package for your enclosure design. Verify that the selected PWM frequency meets the flicker-free requirements of your application.

Part Context

This device belongs to the IS31FL32xx series of LED lighting drivers from Lumissil. These components are designed for applications requiring multiple channels with individual current control. The series emphasizes small footprint solutions for modern consumer electronics and automotive interfaces.
