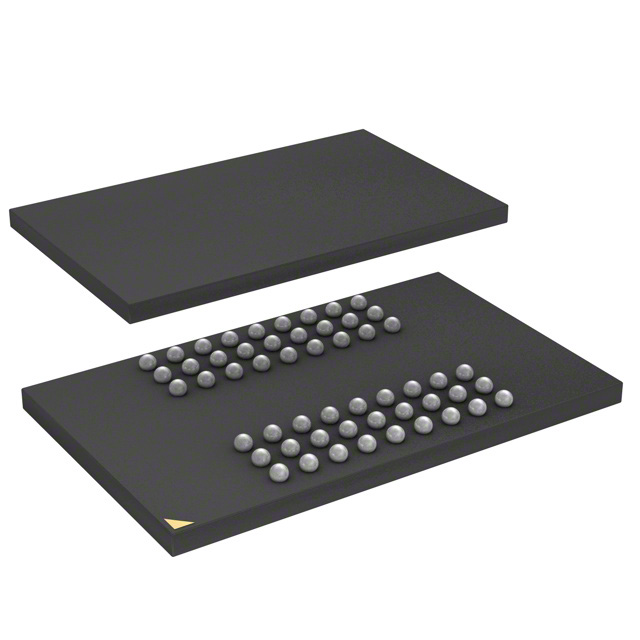

IS42S16160D-7B

Description：IC DRAM 256MBIT PAR 54TFBGA
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tray

SKU:feaa13994d41 Category: Memory IC Brand: ISSI, Integrated Silicon Solution Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IS42S16160D-7B is listed in the Memory IC range at ChipApex. The manufacturer field lists ISSI, Integrated Silicon Solution Inc. Its product description is IC DRAM 256MBIT PAR 54TFBGA. Review the specifications below when checking this part for your BOM.

Memory IC specifications for IS42S16160D-7B

Description：IC DRAM 256MBIT PAR 54TFBGA
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tray
Memory Type：Volatile
Memory Format：DRAM
Technology：SDRAM
Memory Size：256Mbit
Memory Organization：16M x 16
Memory Interface：Parallel
Clock Frequency：143 MHz
Write Cycle Time - Word, Page：-
Voltage - Supply：3V ~ 3.6V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：54-TFBGA
Supplier Device Package：54-TW-BGA (8x13)
Access Time：5.4 ns

Memory IC datasheet and documents for IS42S16160D-7B

IS42S16160D-7B

Memory IC Overview

The IS42S16160D-7BL is a 256Mb Synchronous DRAM manufactured by ISSI. It features a 16-bit data bus width and operates at a maximum clock frequency of 143 MHz. The device utilizes a 54-ball BGA package and supports an access time of 5.4 ns. It functions within a voltage range of 3V to 3.6V and is designed for commercial temperature environments ranging from 0°C to +70°C.

Memory IC Feature Summary

Fully synchronous operation with all signals referenced to the positive clock edge
Internal bank architecture enables row access hiding and precharge operations
Supports programmable burst lengths including sequential and interleave sequences
Includes auto refresh and self-refresh modes for power management

Memory IC Applications

High-speed data transfer systems utilizing pipeline architecture
Memory subsystems requiring interleaved bank access
Applications necessitating random column address changes during burst access

Memory IC Procurement Notes

Verify the specific suffix 'BL' against official datasheets to confirm package type and temperature grade. Confirm that the -7 speed grade aligns with system timing requirements. Check current lifecycle status as distribution availability varies. Ensure moisture sensitivity handling protocols are followed upon receipt.

Memory IC Selection Notes

Select this component when a 16-bit interface is required for 256Mb density. Verify compatibility with LVTTL logic levels for the host controller. Ensure the operating environment remains within the specified commercial temperature limits. Confirm that the 54-ball BGA footprint matches the PCB layout constraints.

Memory IC Part Context

This part belongs to the IS42S16160D series of 256Mb SDRAMs. It shares architectural similarities with other variants in the family, differing primarily in speed grades, package options, and temperature ranges. The D-series designation indicates specific timing characteristics defined by the manufacturer.
