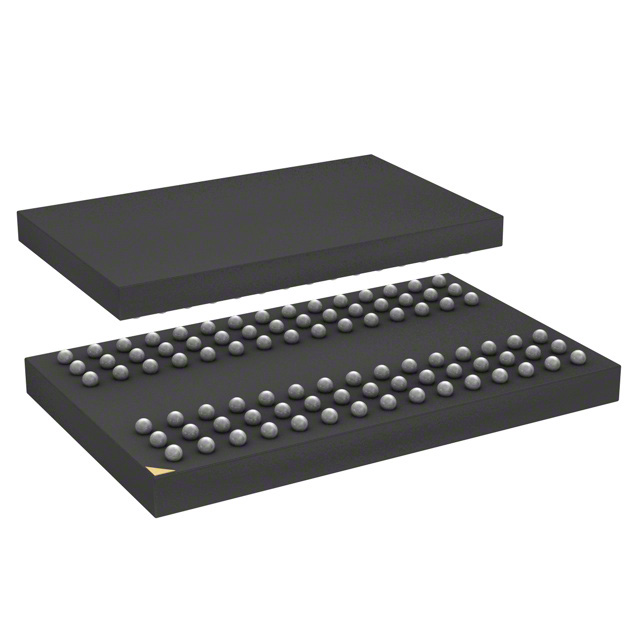

IS42S32160C-6BL-TR

Description：IC DRAM 512MBIT PARALLEL 90WBGA
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tape & Reel (TR)

SKU:96b334988103 Category: Memory IC Brand: ISSI, Integrated Silicon Solution Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IS42S32160C-6BL-TR is listed in the Memory IC range at ChipApex. The manufacturer field lists ISSI, Integrated Silicon Solution Inc. Its product description is IC DRAM 512MBIT PARALLEL 90WBGA. Review the specifications below when checking this part for your BOM.

Memory IC specifications for IS42S32160C-6BL-TR

Description：IC DRAM 512MBIT PARALLEL 90WBGA
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tape & Reel (TR)
Memory Type：Volatile
Memory Format：DRAM
Technology：SDRAM
Memory Size：512Mbit
Memory Organization：16M x 32
Memory Interface：Parallel
Clock Frequency：166 MHz
Write Cycle Time - Word, Page：-
Voltage - Supply：3V ~ 3.6V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：90-LFBGA
Supplier Device Package：90-WBGA (8x13)
Access Time：5.4 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for IS42S32160C-6BL-TR

IS42S32160C-6BL-TR

Memory IC Overview

The IS42S32160C-6BL-TR is a 512Mb Synchronous DRAM manufactured by ISSI. It features a 16M x 32 organization and operates at a maximum clock frequency of 166 MHz with an access time of 5.4 ns. The device utilizes a 90-ball BGA package (8x13mm) and supports a supply voltage range of 3V to 3.6V. Designed for commercial applications, it functions within a temperature range of 0°C to +70°C.

Memory IC Feature Summary

Fully synchronous operation with internal pipelined architecture
Programmable mode register supporting CAS# latency of 2 or 3 clocks
Configurable burst lengths including 1, 2, 4, 8, or full page
Individual byte control via DQM0-3 signals

Memory IC Applications

High-speed data transfer systems requiring pipeline architecture
Commercial electronic devices operating within standard temperature ranges
Systems utilizing LVTTTL interface standards
Applications requiring auto refresh and self refresh capabilities

Memory IC Procurement Notes

Verify the specific suffix TR indicates tape and reel packaging configuration. Confirm the -6 speed grade corresponds to the required 166 MHz performance and 5.4 ns access time. Ensure the 90-ball BGA footprint matches the PCB layout constraints. Check for RoHS compliance status as indicated in official documentation.

Memory IC Selection Notes

Select this component when a 512Mb density with a 32-bit data bus width is required. The -6BL-TR designation specifies the commercial temperature range and surface mount packaging. Consider the 166 MHz operational limit and 3.3V power supply requirements during system design. Verify compatibility with existing memory controllers supporting SDRAM protocols.

Memory IC Part Context

This part belongs to the IS42S32160C series of Synchronous DRAMs from Integrated Silicon Solution Inc. It represents a high-density memory solution designed for commercial-grade applications. The device integrates four independent banks to facilitate concurrent operations and improve throughput efficiency.
