IS43TR82560BL-125KBLI is listed in the Memory IC range at ChipApex. The manufacturer field lists ISSI, Integrated Silicon Solution Inc. Its product description is IC DRAM 2GBIT PARALLEL 78TWBGA. Review the specifications below when checking this part for your BOM.
Memory IC specifications for IS43TR82560BL-125KBLI
- Description：IC DRAM 2GBIT PARALLEL 78TWBGA
- Series：-
- Mfr：ISSI, Integrated Silicon Solution Inc
- Package：Tray
- Memory Type：Volatile
- Memory Format：DRAM
- Technology：SDRAM - DDR3L
- Memory Size：2Gbit
- Memory Organization：256M x 8
- Memory Interface：Parallel
- Clock Frequency：800 MHz
- Write Cycle Time - Word, Page：15ns
- Voltage - Supply：1.283V ~ 1.45V
- Operating Temperature：-40°C ~ 95°C (TC)
- Mounting Type：Surface Mount

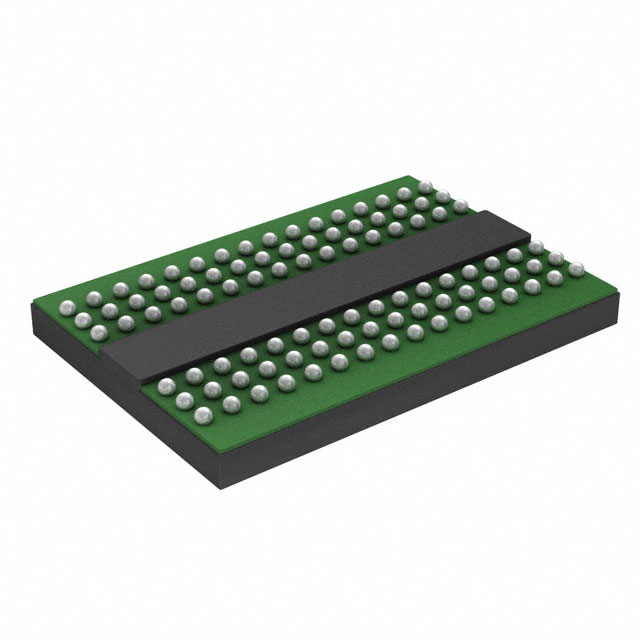

- Package / Case：78-TFBGA
- Supplier Device Package：78-TWBGA (8x10.5)
- Access Time：20 ns
- Grade：-
- Qualification：-
Memory IC datasheet and documents for IS43TR82560BL-125KBLI
Memory IC Overview
The IS43TR82560BL-125KBLI is a 2Gb DDR3 SDRAM manufactured by ISSI. It features a 128Mx16 organization and operates at standard voltage (VDD/VDDQ = 1.5V ± 0.075V) or low voltage (1.35V +0.1/-0.067V). The device supports system frequencies up to 1066 MHz with a speed bin of 125K (DDR3-1600K, CL-11-11-11). It utilizes an 8n-bit prefetch architecture and includes 8 internal banks for concurrent operation. The component is housed in a 96-ball BGA package measuring 9mm x 13mm.
Memory IC Feature Summary
- Supports backward compatibility between standard 1.5V and low voltage 1.35V operations.
- Features programmable CAS latency, additive latency, burst length, and burst sequence.
- Includes dynamic on-die termination and off-chip driver impedance adjustment capabilities.
- Provides asynchronous reset functionality and auto self-refresh modes.
Memory IC Applications
- High-speed data transfer systems
- Concurrent memory bank operations
- Systems requiring programmable timing parameters
Memory IC Procurement Notes
Verify the specific speed bin and voltage requirements against the target system design. Confirm that the 96-ball BGA package dimensions align with the PCB layout constraints. Ensure the ordering suffix matches the required temperature range and packaging format as defined in the official datasheet specifications.
Memory IC Selection Notes
Select this component for applications requiring 2Gb capacity with a 16-bit data width. Consider the 125K speed bin for systems operating at 1600MT/s. Evaluate the power supply options to determine if standard or low voltage operation is preferred based on system efficiency requirements.
Memory IC Part Context
This part belongs to the IS43/46TR series of DDR3 SDRAMs from Integrated Silicon Solution Inc. The series offers various density and organization options, including 256Mx8 and 128Mx16 configurations. The BL variant specifically denotes the 128Mx16 organization packaged in a 96-ball BGA.
Memory IC FAQ
What is the maximum system frequency supported by this device?
The device supports system frequencies up to 1066 MHz.
How many internal banks does the IS43TR82560BL support?
It features 8 internal banks for concurrent operation.
