IS61LPD51236A-200TQI

Memory IC Overview

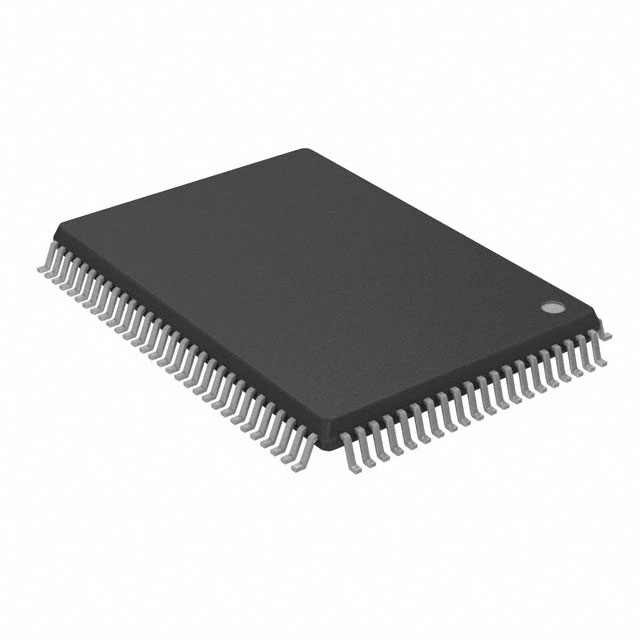

The IS61LPD51236A-200TQI is a 18 Mbit synchronous pipelined static RAM organized as 512K x 36. It operates with a maximum clock frequency of 200 MHz and features a 3.1 ns access time. The device supports dual voltage I/O levels of 3.3V or 2.5V, with core supply voltages ranging from 3.135 V to 3.465 V. Maximum power consumption is specified at 475 mA. It is housed in a 100-pin TQFP package and functions within an industrial temperature range of -40°C to +85°C.

Memory IC Feature Summary

• Supports internal self-timed write cycles for efficient data management
• Features individual byte write control alongside global write capabilities
• Includes registered address, data, and control inputs synchronized by the clock
• Provides auto power-down functionality during deselect states

Memory IC Applications

• High-speed cache memory systems
• Network routing equipment buffers
• Telecommunications signal processing units

Memory IC Procurement Notes

Verify the specific suffix 'TQI' confirms the 100-pin TQFP package and industrial temperature grade (-40°C to +85°C). Confirm that the '-200' designation matches the required 200 MHz operating speed. Ensure the datasheet specifies the correct I/O voltage compatibility (3.3V or 2.5V) for your system design. Check for RoHS compliance status if environmental regulations apply to your deployment.

Memory IC Selection Notes

Select this component when a wide 36-bit data path is required for high-throughput applications. The synchronous pipelined architecture suits designs needing predictable latency at high clock speeds. Consider the dual-voltage I/O capability if interfacing with mixed voltage logic families. Evaluate the 100-pin TQFP package constraints against available PCB real estate and thermal dissipation requirements.

Memory IC Part Context

This part belongs to the ISSI IS61LPD series of synchronous pipelined SRAMs. The series offers various densities and organizations, including 18 Mbit configurations. These devices are designed for high-performance embedded solutions requiring fast memory access. The family typically includes variants with different packages and temperature ranges to suit diverse industrial and commercial needs.

Memory IC Replacement Considerations

Publicly confirmed substitute part numbers for this specific configuration were not identified in the provided documentation.
