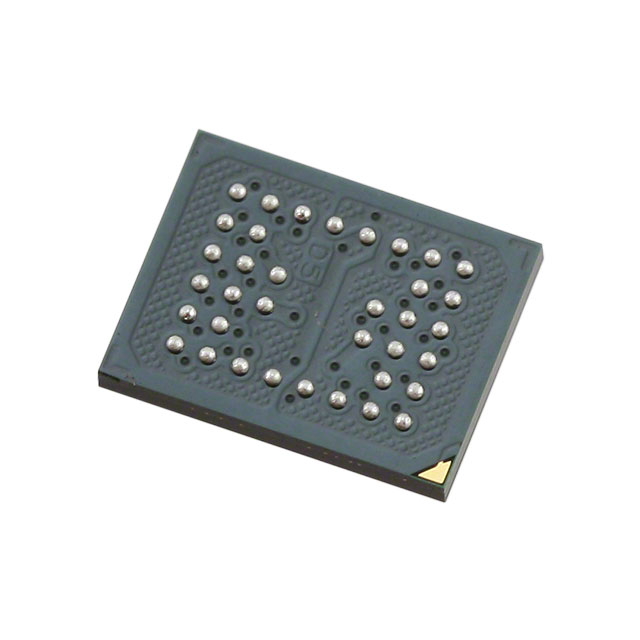

IS63LV1024L-12BI

Description：IC SRAM 1MBIT PARALLEL 36MINIBGA
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tray

SKU:b36fae69d703 Category: Memory IC Brand: ISSI, Integrated Silicon Solution Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IS63LV1024L-12BI is listed in the Memory IC range at ChipApex. The manufacturer field lists ISSI, Integrated Silicon Solution Inc. Its product description is IC SRAM 1MBIT PARALLEL 36MINIBGA. Review the specifications below when checking this part for your BOM.

Memory IC specifications for IS63LV1024L-12BI

Description：IC SRAM 1MBIT PARALLEL 36MINIBGA
Series：-
Mfr：ISSI, Integrated Silicon Solution Inc
Package：Tray
Memory Type：Volatile
Memory Format：SRAM
Technology：SRAM - Asynchronous
Memory Size：1Mbit
Memory Organization：128K x 8
Memory Interface：Parallel
Clock Frequency：-
Write Cycle Time - Word, Page：12ns
Voltage - Supply：3.15V ~ 3.45V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：36-TFBGA
Supplier Device Package：36-miniBGA (8x10)
Access Time：12 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for IS63LV1024L-12BI

IS63LV1024L-12BI

Memory IC Overview

The IS63LV1024L-12BI is a 1Mbit (128K x 8) high-speed CMOS static RAM operating on a single 3.3V supply. It features a 12 ns access time and utilizes a revolutionary pinout with multiple center power and ground pins for enhanced noise immunity. The device supports fully static operation without clocks or refresh, includes CE power-down modes, and offers TTL-compatible inputs and outputs. It is available in lead-free packages including the 36-pin mini BGA.

Memory IC Feature Summary

Revolutionary pinout design incorporating multiple center power and ground pins to improve noise immunity
Fully static operation requiring no clock signals or periodic refresh cycles
Integrated chip enable (CE) power-down capability for reduced standby consumption
TTL compatible input and output logic levels

Memory IC Applications

High-performance embedded memory systems
Industrial control applications requiring low power
Consumer electronics utilizing 3.3V logic interfaces

Memory IC Procurement Notes

Verify the specific ordering suffix 'B' corresponds to the 36-pin mini BGA package and 'I' indicates industrial temperature range (-40°C to +85°C). Confirm lead-free status if required by environmental compliance standards. Ensure the datasheet revision matches the manufacturing batch specifications before finalizing procurement orders.

Memory IC Selection Notes

Select this component when a 12 ns access speed is sufficient for the target application. Choose the IS63LV1024L variant over the standard IS63LV1024 for lower active and standby power consumption. Verify that the system architecture supports the specific pin configuration and voltage requirements of the 3.3V single-supply operation.

Memory IC Part Context

This part belongs to the IS63LV1024/IS63LV1024L family of 1Mbit SRAMs manufactured by Integrated Silicon Solution. The series provides various speed grades and package options, including SOJ, TSOP, STSOP, and BGA formats. The 'L' designation specifically denotes the low-power version optimized for 3.3V operation.
