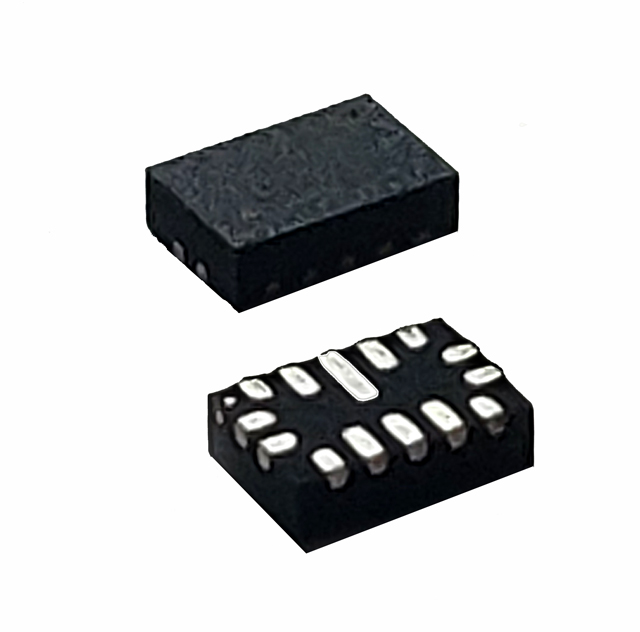

IS6605A

$2.87

Description：IC REG BUCK ADJ 6A 14QFN
Series：-
Mfr：Innovisionsemi
Package：Bag

SKU:a6770ff7a443 Category: Voltage Regulators - DC DC Switching Regulators Brand: Innovisionsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IS6605A is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Innovisionsemi. Its product description is IC REG BUCK ADJ 6A 14QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for IS6605A

Description：IC REG BUCK ADJ 6A 14QFN
Series：-
Mfr：Innovisionsemi
Package：Bag
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：4V
Voltage - Input (Max)：16V
Voltage - Output (Min/Fixed)：0.6V
Voltage - Output (Max)：5.5V
Current - Output：6A
Frequency - Switching：Selectable
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：14-WFQFN
Supplier Device Package：14-QFN (2x3)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for IS6605A

IS6605A

Voltage Regulators - DC DC Switching Regulators Overview

The IS6605A is a fully integrated synchronous buck converter manufactured by Innovision Semiconductor. It utilizes SMT installation in a WFQFN14 package and features one output channel with an integrated synchronous rectifier. The device is designed for high power density applications, supporting wide input voltage ranges and delivering continuous output current suitable for single-input supply conditions.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Fully integrated synchronous step-down architecture
Turbo Constant On Time control for fast transient response
Internal LDO biasing with optional external support
Comprehensive protection mechanisms including OCP, OVP, UVP, and OTP

Voltage Regulators - DC DC Switching Regulators Applications

VDD/VDDQ power supply units
Single-input supply systems
High power density conversion modules

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix or variant against the official datasheet to ensure compatibility with required input voltage ranges and thermal performance specifications. Confirm that the WFQFN14 package dimensions align with the target PCB layout constraints. Ensure that the sourcing channel provides genuine components from Innovision Semiconductor to maintain reliability standards for critical power infrastructure.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact, high-efficiency solution is required for single-input applications. The integrated nature of the device minimizes external component count, reducing board space and cost. Consider the thermal characteristics of the WFQFN14 package for heat dissipation requirements in dense layouts.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the family of high-power-density synchronous converters from Innovision Semiconductor. It shares design philosophies with models like the IS6607A and IS6608A, focusing on integrated power stages and advanced control algorithms. The series targets efficient voltage regulation in modern electronic systems requiring stable power delivery.
