ISC1210EB27NM

Fixed Inductors Overview

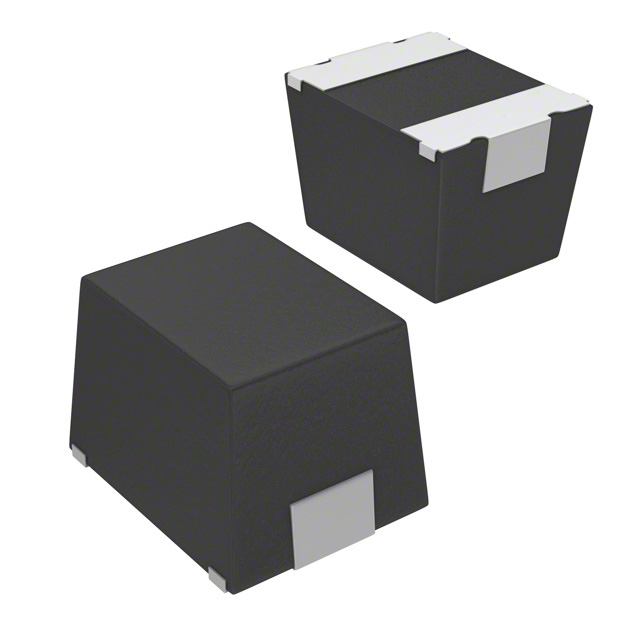

The ISC1210EB27NM is a shielded wirewound RF inductor from the Vishay Dale ISC-1210 series, designed for surface mount applications. It features an iron powder core and offers an inductance of 27 nH with a tolerance of ±20%. The component supports a maximum DC current of 610 mA and maintains a maximum DC resistance of 170 mOhms. It operates within a temperature range of -55°C to +125°C and exhibits a self-resonant frequency of 310 MHz.

Fixed Inductors Feature Summary

• Shielded wirewound construction utilizing an iron powder core
• Designed for high-frequency RF circuit integration
• Surface mount package optimized for PCB space constraints

Fixed Inductors Applications

• RF signal filtering
• Impedance matching networks
• High-frequency oscillation circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix EB against the manufacturer datasheet to confirm the exact electrical characteristics and packaging configuration. Ensure that the selected variant aligns with the required shielding and tolerance specifications for the target application design.

Fixed Inductors Selection Notes

Select this component when a compact 1210 footprint is required for low-inductance RF paths. Consider the 610 mA current rating and 170 mOhm resistance limits to ensure thermal stability and performance integrity under operating conditions.

Fixed Inductors Part Context

This part belongs to the ISC-1210 family of fixed inductors manufactured by Vishay Dale. The series provides various inductance values and tolerances within the standard 1210 (3225 metric) surface mount package, catering to diverse RF and general electronic circuit requirements.

Fixed Inductors Replacement Considerations

Cross-reference with other ISC-1210 variants or IMC-1210 series components if different tolerance levels or current ratings are needed. Verify pin compatibility and physical dimensions before substituting with alternative manufacturers' offerings.
