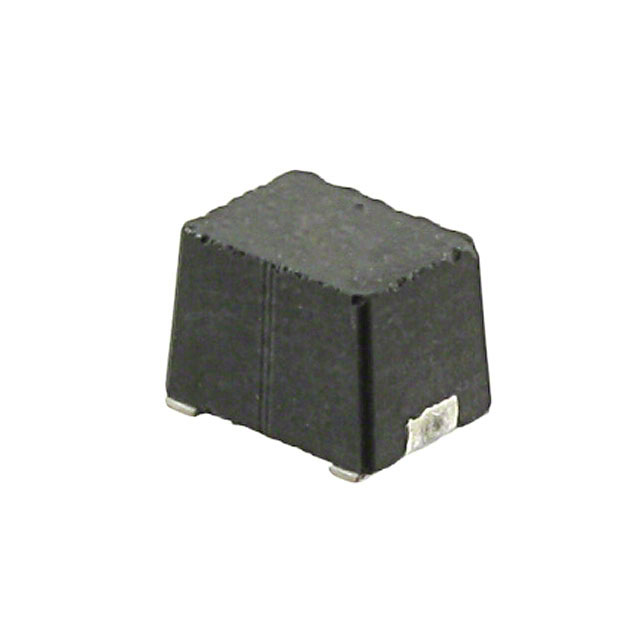

ISC1812ESR15K

$0.31

Description：FIXED IND 150NH 491MA 290MOHM SM
Series：ISC-1812
Mfr：Vishay Dale
Package：Tape & Reel (TR)

SKU:9363584ec30a Category: Fixed Inductors Brand: Vishay Dale

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ISC1812ESR15K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is FIXED IND 150NH 491MA 290MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for ISC1812ESR15K

Description：FIXED IND 150NH 491MA 290MOHM SM
Series：ISC-1812
Mfr：Vishay Dale
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：Non-Magnetic
Inductance：150 nH
Tolerance：±10%
Current Rating (Amps)：491 mA
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：290mOhm Max
Q @ Freq：30 @ 25.2MHz
Frequency - Self Resonant：390MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：25.2 MHz
Mounting Type：Surface Mount
Package / Case：1812 (4532 Metric)
Supplier Device Package：1812
Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)：0.134" (3.40mm)
Features：-

Fixed Inductors datasheet and documents for ISC1812ESR15K

ISC1812ESR15K

Fixed Inductors Overview

The ISC1812ESR15K is a shielded surface-mount RF inductor from the Vishay Dale ISC series, housed in an 1812 (4532 metric) package. It features a ferrite drum core and offers an inductance of 15 µH with a tolerance of ±10%. The component supports a maximum DC current of 252 mA and has a maximum DC resistance of 1.1 Ohms. It operates within a temperature range of -55°C to +125°C and exhibits a self-resonant frequency of 18 MHz.
