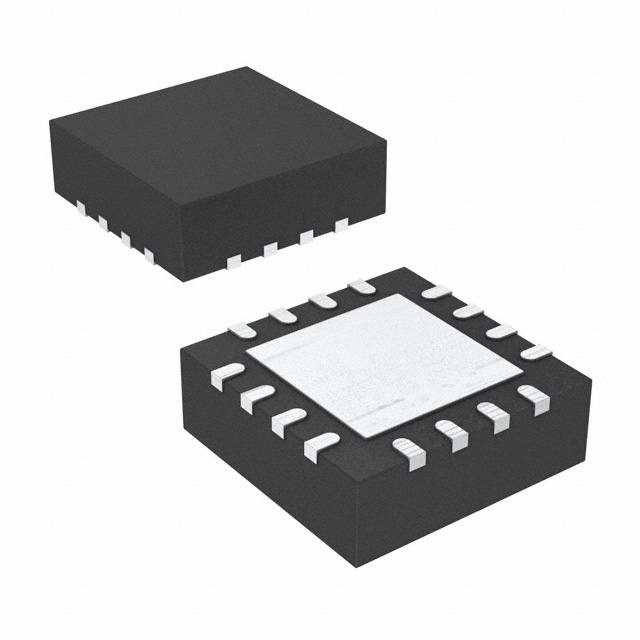

- Description：IC TRANSCEIVER 1/0 16QFN
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR)
- Series：-
- Type：Driver
- Protocol：-
- Number of Drivers/Receivers：1/0
- Duplex：-
- Data Rate：-
- Voltage - Supply：8V ~ 13.2V
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount
- Package / Case：16-TFQFN Exposed Pad
- Supplier Device Package：16-QFN (4x4)
- Receiver Hysteresis：-
Download product information
Overview
The ISL15100IRZ-T13 is a single-port PLC differential line driver manufactured by Renesas Electronics Corporation. It operates within a supply voltage range of 8V to 13.2V and supports an extended industrial temperature range from -40°C to +85°C. The device delivers 15.5dBm of total transmit signal power into a 100Ω line load, achieving an average MTPR distortion of -43dB across the output spectrum up to 86MHz. It utilizes a QFN package with surface mount mounting type.
Feature Summary
- Single-port PLC differential line driver architecture
- High transmit signal power capability into standard line loads
- Low average MTPR distortion across specified frequency spectrum
Applications
- Power Line Communication (PLC) systems
- Industrial communication networks
- Smart metering infrastructure
Procurement Notes
Verify component authenticity through authorized channels due to potential availability constraints. Confirm that the specific suffix matches the required tape and reel packaging format for automated assembly processes. Ensure compliance with RoHS directives and moisture sensitivity levels prior to storage and handling procedures.
Selection Notes
Select this component when designing single-channel PLC interfaces requiring high line drive strength. Consider the 100Ω impedance matching requirements for transmission lines. Evaluate thermal management needs given the operational temperature limits and surface mount package characteristics for reliable long-term performance.
Part Context
This part belongs to the ISL15100 series of PLC drivers. It is distinct from other Renesas buffer or MOSFET gate driver families. The T13 suffix indicates a specific tape and reel packaging configuration suitable for high-volume manufacturing environments compared to tube-packaged variants.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing PCB layouts if considering alternative single-port PLC drivers from other manufacturers.
