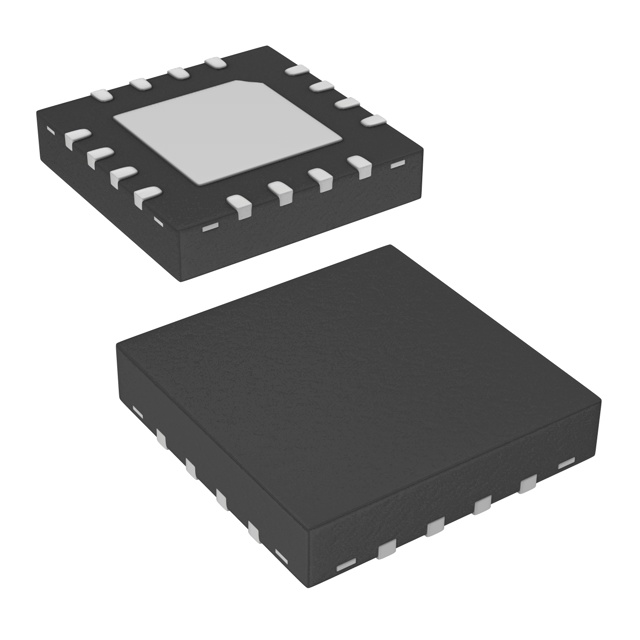

ISL1536IRZ

Overview

The ISL1536IRZ is a dual-channel differential amplifier designed for central office line driving in DMT ADSL2+ applications. It features very low power consumption and high drive capability, ensuring reliable signal exchange over digital subscriber lines. The device supports two output channels with integrated protection mechanisms to maintain signal integrity in demanding telecommunication environments.

Feature Summary

• Dual-channel differential amplifier architecture optimized for central office line driving
• Very low power consumption design suitable for energy-efficient telecommunications infrastructure
• High drive capability to ensure reliable signal exchange over digital subscriber lines

Applications

• Central office line driving for DMT ADSL2+
• Digital subscriber line (DSL) signal transmission systems
• Telecommunications equipment requiring low-power differential amplification

Procurement Notes

Verify the component authenticity by checking the manufacturer marking and datasheet specifications against official Renesas documentation. Ensure the package type matches the required surface-mount configuration. Confirm that the operating temperature range aligns with your system's environmental requirements before finalizing procurement.

Selection Notes

Select this component when designing DSL2+ systems requiring dual-channel line drivers with minimal power usage. Consider its high drive capability for long-line applications. Evaluate thermal performance within the specified operating range. Ensure compatibility with existing central office infrastructure standards and signal processing requirements.

Part Context

The ISL1536 belongs to Renesas' portfolio of analog interface solutions for telecommunications. It complements other line driver and transceiver products aimed at improving network reliability. This part addresses the growing demand for efficient DSL2+ deployment in modern communication networks.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Renesas resources for potential cross-references or updated product line replacements.
