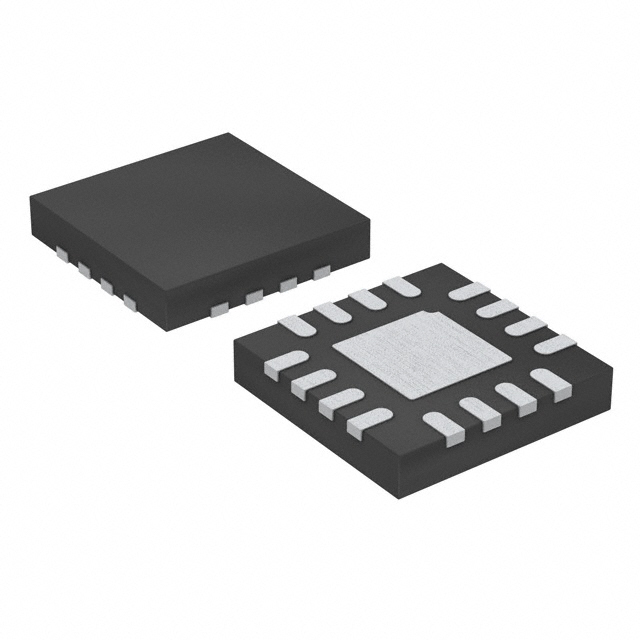

ISL78233AARZ-T7A

Voltage Regulators - DC DC Switching Regulators Overview

The ISL78233AARZ-T7A is an automotive-grade, monolithic synchronous buck regulator manufactured by Renesas Electronics. It integrates high-side and low-side power MOSFETs to deliver a regulated output current of up to 4 amperes from an input voltage range of 2.7 volts to 5.5 volts. The device operates with a fixed internal switching frequency of 2 megahertz, enabling the use of compact external components. Designed for harsh environments, it supports junction temperatures up to 175 degrees Celsius and functions reliably across an extended ambient temperature range of -40 degrees Celsius to +125 degrees Celsius.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrated dual N-channel power MOSFETs for high-efficiency step-down conversion
• Automotive qualification compliant with AEC-Q100 standards
• Fixed 2 MHz switching frequency minimizes passive component size
• Built-in thermal shutdown and overcurrent protection mechanisms

Voltage Regulators - DC DC Switching Regulators Applications

• Body control modules in electric and hybrid vehicles
• Infotainment system power distribution
• Sensor node power regulation in advanced driver assistance systems
• Telematics unit power supplies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'T7A' corresponds to the tape and reel packaging configuration required for automated assembly processes. Confirm that the 'AA' designation aligns with the intended automotive grade specifications and lead-free material compliance requirements for your manufacturing line. Ensure compatibility with standard surface mount reflow profiles.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact, high-current solution is needed for 5-volt automotive bus architectures. It is suitable for designs requiring minimal external footprint due to the integrated power stage and high-frequency operation. Consider its robust thermal performance for applications where heat dissipation is constrained within enclosed electronic control units.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the ISL78233 family of synchronous buck regulators designed specifically for automotive electronics. The series offers various current ratings and package options to support diverse power management needs in vehicle networks. It complements other Renesas automotive PMICs and microcontrollers in complete system solutions.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Check for direct pin-compatible alternatives within the ISL7823x series or newer Renesas generations such as the RAA222xxx series. Verify electrical parameter equivalence and automotive qualification status before substitution.
