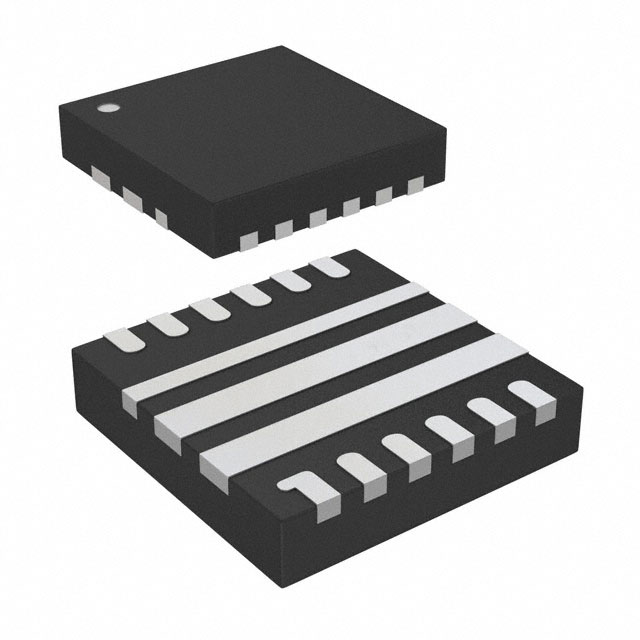

ISL85009FRZ-T is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC REG BUCK ADJ 9A 15TQFN. Review the specifications below when checking this part for your BOM.
Voltage Regulators - DC DC Switching Regulators specifications for ISL85009FRZ-T
- Description：IC REG BUCK ADJ 9A 15TQFN
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR)
- Function：Step-Down
- Output Configuration：Positive
- Topology：Buck
- Output Type：Adjustable
- Number of Outputs：1
- Voltage - Input (Min)：3.8V
- Voltage - Input (Max)：18V
- Voltage - Output (Min/Fixed)：0.6V
- Voltage - Output (Max)：18V
- Current - Output：9A
- Frequency - Switching：300kHz, 600kHz
- Synchronous Rectifier：Yes
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Surface Mount
- Package / Case：15-WFQFN
- Supplier Device Package：15-TQFN (3.5x3.5)
- Grade：-
- Qualification：-
Voltage Regulators - DC DC Switching Regulators datasheet and documents for ISL85009FRZ-T
Voltage Regulators - DC DC Switching Regulators Overview
The ISL85009FRZ-T is a monolithic synchronous buck regulator manufactured by Renesas Electronics Corporation. It delivers up to 9A of continuous output current with an input voltage range of 3.8V to 18V. The device features adjustable PWM output voltage starting from 0.6V and operates within a high-efficiency architecture suitable for compact power designs.
Voltage Regulators - DC DC Switching Regulators Feature Summary
- Monolithic synchronous buck regulator topology
- Adjustable PWM output voltage capability
- High efficiency operation under load
Voltage Regulators - DC DC Switching Regulators Applications
- Point-of-load regulation in industrial systems
- Power supply stages for embedded computing platforms
- Battery-powered equipment requiring stable DC conversion
Voltage Regulators - DC DC Switching Regulators Procurement Notes
Verify the specific suffix 'FRZ-T' against official Renesas documentation to confirm package type, tape-and-reel specifications, and environmental compliance status. Ensure compatibility with your PCB footprint and thermal management requirements before finalizing procurement orders.
Voltage Regulators - DC DC Switching Regulators Selection Notes
Select this component when a single-phase solution is required for currents up to 9A with an input range extending to 18V. Consider its synchronous design for improved efficiency compared to non-synchronous alternatives in similar power classes.
Voltage Regulators - DC DC Switching Regulators Part Context
This part belongs to the ISL85009 family of synchronous buck regulators. It is designed as a high-efficiency, monolithic solution for applications requiring robust current delivery from moderate input voltages, serving as a key power management element in various electronic systems.
Voltage Regulators - DC DC Switching Regulators Replacement Considerations
Consult official substitution guides for equivalent parts from Renesas or other manufacturers offering similar 9A synchronous buck regulators with compatible input ranges and pin configurations.
