ISL85014FRZ-T

Voltage Regulators - DC DC Switching Regulators Overview

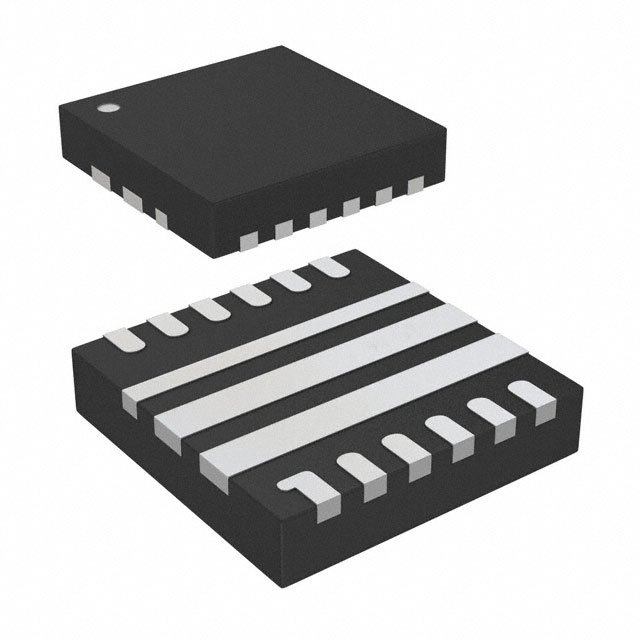

The ISL85014FRZ-T is a synchronous buck switching regulator manufactured by Renesas Electronics Corporation. It operates within an input voltage range of 3.8 V to 18 V and delivers up to 14 A of output current. The device features an adjustable output voltage and supports switching frequencies between 280 kHz and 600 kHz. It includes a shutdown function and exhibits a static current of 3 mA. The component is housed in a TQFN-15 package, rated for operation from -40°C to +125°C, and complies with RoHS standards.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Synchronous buck topology for high efficiency
• Adjustable output voltage capability
• Integrated shutdown control function

Voltage Regulators - DC DC Switching Regulators Applications

• Point-of-load regulation for embedded systems
• Industrial equipment power distribution
• Telecommunications infrastructure power supplies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'T' indicates reel or cut tape packaging configuration as listed by distributors. Confirm RoHS compliance status through official documentation. Ensure the TQFN-15 package matches your PCB footprint requirements. Check for humidity sensitivity handling instructions if storage conditions exceed specified limits. Validate that the 14 A output rating aligns with your thermal management design.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when an input voltage up to 18 V and high current delivery near 14 A are required. The adjustable output allows flexibility for various load voltages. Consider the TQFN-15 package size for space-constrained designs. Verify that the operating temperature range of -40°C to +125°C meets environmental demands. Compare switching frequency options against EMI constraints.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the ISL85014 series of synchronous buck regulators from Renesas/Intersil. It shares family characteristics with other models like the ISL85012 but offers higher current capacity. The series targets applications requiring efficient step-down conversion from standard bus voltages. Development tools such as the ISL85014EVAL1Z are available for evaluation.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Publicly confirmed substitute part numbers are not provided in the source material.
