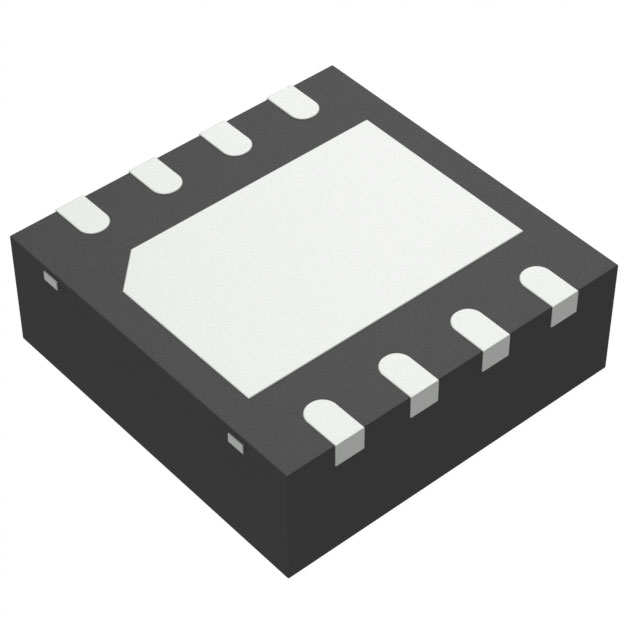

ISL85413FRTZT7AR5726 is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC REG BUCK ADJ 300MA 8TDFN. Review the specifications below when checking this part for your BOM.
Voltage Regulators - DC DC Switching Regulators specifications for ISL85413FRTZT7AR5726
- Description：IC REG BUCK ADJ 300MA 8TDFN
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Bulk
- Function：Step-Down
- Output Configuration：Positive
- Topology：Buck
- Output Type：Adjustable
- Number of Outputs：1
- Voltage - Input (Min)：3.5V
- Voltage - Input (Max)：40V
- Voltage - Output (Min/Fixed)：0.6V
- Voltage - Output (Max)：40V
- Current - Output：300mA
- Frequency - Switching：700kHz
- Synchronous Rectifier：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：8-WFDFN Exposed Pad
- Supplier Device Package：8-TDFN (3x3)
- Grade：-
- Qualification：-
Voltage Regulators - DC DC Switching Regulators datasheet and documents for ISL85413FRTZT7AR5726
Voltage Regulators - DC DC Switching Regulators Overview
The ISL85413FRTZ-T is a synchronous buck regulator with an input voltage range of 3.5V to 40V and a maximum output current of 300mA. It integrates high-side and low-side NMOS devices, operates at a typical switching frequency of 700kHz, and supports selectable PFM or forced PWM modes. The device features internal soft-start, power-good indication, and enable functions, housed in a 3mm x 3mm TDFN package.
Voltage Regulators - DC DC Switching Regulators Feature Summary
- Integrates high-side and low-side NMOS FETs for high efficiency
- Supports selectable PFM or forced PWM operation at light loads
- Requires minimal external components due to internal configuration
Voltage Regulators - DC DC Switching Regulators Applications
- High voltage industrial applications
- Battery powered applications
- General purpose DC-DC conversion
Voltage Regulators - DC DC Switching Regulators Procurement Notes
Verify the exact suffix against official Renesas documentation to confirm tape-and-reel specifications and marking codes. Ensure the ordering part number matches the required packaging format. Cross-reference the manufacturer date code and lot traceability requirements with your supply chain standards before finalizing procurement orders.
Voltage Regulators - DC DC Switching Regulators Selection Notes
Select this component when a wide input voltage range up to 40V is required with moderate output current capabilities. It is suitable for designs prioritizing low bill-of-materials count and simplified compensation. Consider the thermal performance within the specified junction temperature range during layout planning.
Voltage Regulators - DC DC Switching Regulators Part Context
This part belongs to the ISL8541x family of synchronous buck regulators from Renesas Electronics (formerly Intersil). The family includes variants with different current ratings and input voltage ranges, such as the ISL85410 and ISL85415, sharing similar control architectures and integration levels.
Voltage Regulators - DC DC Switching Regulators Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative parts by comparing electrical parameters, pinout configurations, and thermal characteristics against the original datasheet.
