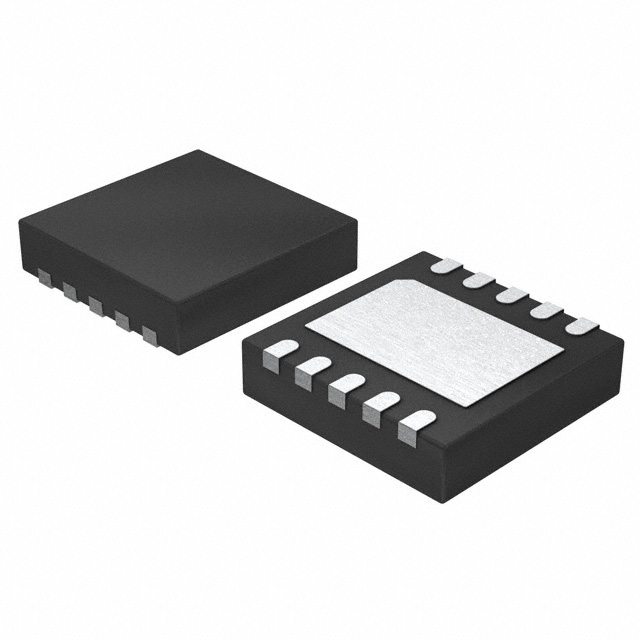

ISL97701IRZ-T7

$4.18

Description：IC REG BOOST ADJ 1.2A 10DFN
Series：-
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:95671e2c1430 Category: Voltage Regulators - DC DC Switching Regulators Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ISL97701IRZ-T7 is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC REG BOOST ADJ 1.2A 10DFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for ISL97701IRZ-T7

Description：IC REG BOOST ADJ 1.2A 10DFN
Series：-
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Up
Output Configuration：Positive
Topology：Boost
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：2.3V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：4.3V
Voltage - Output (Max)：28V
Current - Output：1.2A (Switch)
Frequency - Switching：1MHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：10-VFDFN Exposed Pad
Supplier Device Package：10-DFN (3x3)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for ISL97701IRZ-T7

ISL97701IRZ-T7

Voltage Regulators - DC DC Switching Regulators Overview

The ISL97701IRZ-T7 is a high-efficiency boost converter featuring an integrated boost FET, Schottky diode, and input disconnect switch. It operates with an input voltage range of 2.3V to 5.5V and delivers up to 1.2A output current at switching frequencies up to 1100kHz. The device utilizes pulse width modulation control mode and achieves efficiencies up to 87%. It supports output capabilities of up to 50mA at 18V using integrated 500mA switches. The component is housed in a DFN-10 package measuring 3x3mm and complies with RoHS standards.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated protection FET disconnects the boost inductor from the input supply during output faults or when disabled, ensuring zero output current in standby mode.

Voltage Regulators - DC DC Switching Regulators Applications

Portable electronic devices requiring efficient step-up power conversion
Battery-powered systems needing extended runtime through high efficiency
Applications requiring low quiescent current and compact form factors

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity as this part number is marked as obsolete by the manufacturer. Confirm availability through authorized distributors only. Check for end-of-life status and potential production discontinuation risks before finalizing procurement plans. Ensure compatibility with existing design specifications if substituting.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for designs requiring a compact boost solution with integrated passive components. Consider its wide input voltage range and high efficiency for battery-operated applications. Evaluate the DFN-10 package size against board space constraints. Verify thermal performance requirements given the integrated switch capabilities.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to Renesas Electronics' (formerly Intersil) portfolio of power management integrated circuits. It represents a specialized boost regulator designed for portable electronics. The product line focuses on providing high-efficiency solutions with minimal external component count.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Renesas resources for current alternatives due to the obsolete status of this specific model.
