ISM95-6251AH-16.000MHZ

Oscillators Overview

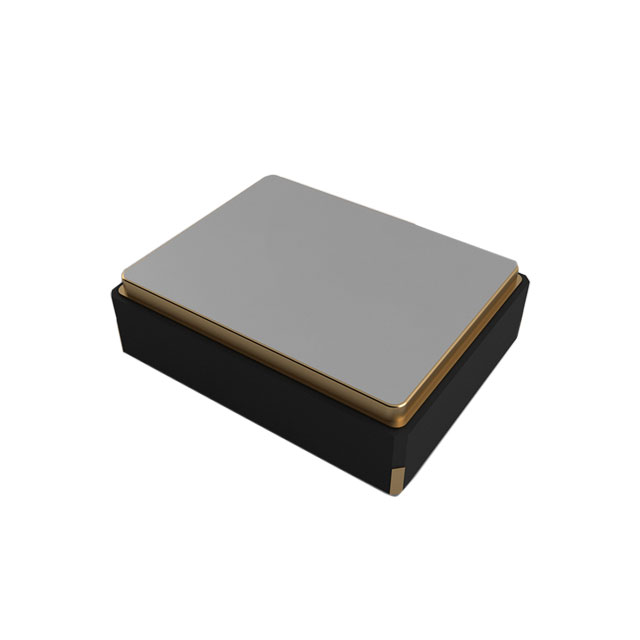

The ISM95-6251AH-16.000MHZ is a standard clock oscillator manufactured by ILSI, operating at a frequency of 16 MHz. It utilizes CMOS output logic and functions with a supply voltage of 2.5 V. The device features an enable/disable control pin for power management. It is housed in a compact 4-SMD, no-lead package with dimensions of 2.0 mm x 2.5 mm. The unit employs a crystal base resonator and offers a frequency stability of ±25 ppm. Maximum supply current is rated at 20 mA.

Oscillators Feature Summary

• Integrates enable/disable functionality for active power management
• Utilizes CMOS output logic for digital interface compatibility
• Housed in a compact ceramic surface-mount package

Oscillators Applications

• Standard clock signal generation for digital circuits
• Timing reference for microprocessor systems
• Embedded system clock sources

Oscillators Procurement Notes

Verify the specific suffix AH against the manufacturer's official datasheet to confirm voltage and package specifications. Ensure the required frequency tolerance matches the application requirements. Confirm RoHS compliance status through the supplier documentation before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 2.5 V CMOS oscillator with enable control is required. Verify that the 16 MHz frequency aligns with system timing needs. Ensure the 4-SMD footprint fits the PCB layout constraints. Check that the ±25 ppm stability meets the design specifications.

Oscillators Part Context

This part belongs to the ISM95 series of surface-mount oscillators from ILSI. The series provides various frequencies and voltage options. The ISM95-6251AH variant specifically targets low-voltage applications requiring precise timing and power efficiency in compact electronic designs.

Oscillators Replacement Considerations

Cross-reference with other ILSI ISM95 series parts for compatible form factors. Verify electrical parameters such as voltage and frequency before substituting. Consult official distributor databases for confirmed equivalent part numbers.
