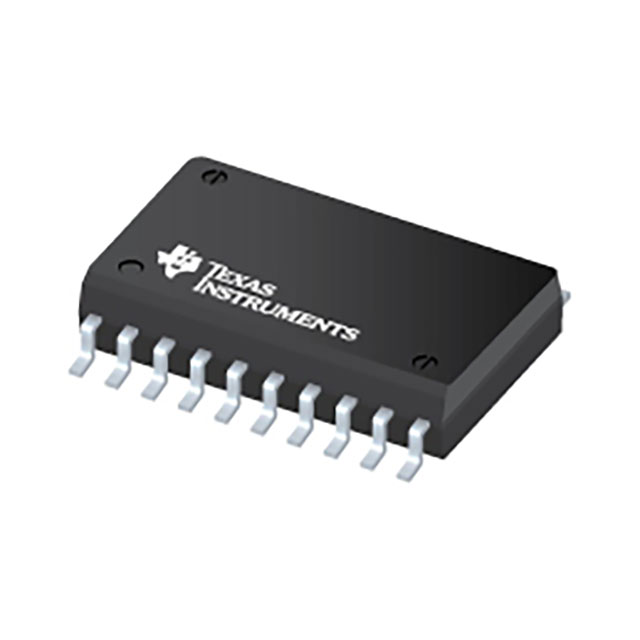

ISOW7744FDFMR

Overview

The ISOW7744FDFMR is a reinforced, quad-channel digital isolator from Texas Instruments featuring integrated power. It provides four isolated data channels with zero delay on the primary side and four channels on the secondary side (0/4 configuration). The device utilizes capacitive coupling for signal transmission and magnetic coupling for power transfer across the isolation barrier. It operates within a supply voltage range of 2.97V to 3.63V on the primary side and 4.5V to 5.5V on the secondary side. The component supports an operating temperature range from -40°C to +125°C and is housed in a 20-pin SOIC package.

Feature Summary

• Integrated power transfer capability eliminates the need for external isolated power supplies on the secondary side.
• Reinforced insulation rating ensures compliance with strict safety standards for industrial applications.
• Low electromagnetic emissions and low ripple characteristics minimize interference in sensitive environments.

Applications

• Industrial automation systems requiring robust galvanic isolation
• Medical equipment needing reinforced isolation barriers
• Power metering and energy management interfaces

Procurement Notes

Verify the specific suffix 'FDFMR' corresponds to the tape-and-reel packaging format required for automated assembly processes. Confirm that the integrated power architecture aligns with the system's secondary-side voltage and current demands before procurement. Ensure ESD protection measures are implemented during handling due to the sensitivity of the internal isolation barrier components.

Selection Notes

Select this component when a single-chip solution for both signal isolation and power delivery is required to reduce board space. It is suitable for designs needing high reliability and low noise compared to standard capacitive isolators. Consider the thermal performance of the SOIC-20 package under maximum load conditions to ensure stable operation within the specified temperature range.

Part Context

This part belongs to the ISOW774x family of digital isolators, which integrates power and data into a single package. Unlike traditional isolators that require separate isolated power supplies, this series combines magnetic power transfer with capacitive data isolation. This integration simplifies design complexity and improves system reliability by reducing the number of external components needed.

Replacement Considerations

Direct replacements include other members of the ISOW774x family such as the ISOW7742 or ISOW7741, depending on the required channel count and polarity configuration. Verify pin compatibility and electrical specifications against the original design requirements before substitution.
