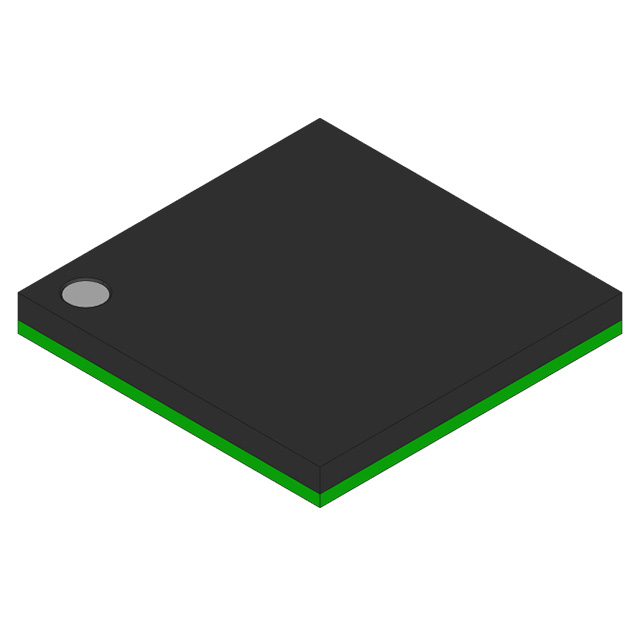

ISPLSI2064VL-135LB100

$6.65

Description：IC CPLD 64MC 7.5NS 100CABGA
Series：ispLSI ® 2064VL

SKU:f9281d96d3b9 Category: CPLDs (Complex Programmable Logic Devices) Brand: Lattice Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC CPLD 64MC 7.5NS 100CABGA
Series：ispLSI ® 2064VL
Mfr：Lattice Semiconductor Corporation
Package：Bulk
Programmable Type：In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max：7.5 ns
Voltage Supply - Internal：2.3V ~ 2.7V
Number of Macrocells：64
Number of I/O：64
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：100-LFBGA
Supplier Device Package：100-CABGA (10x10)
Number of Gates：2000
Number of Logic Elements/Blocks：16

Download product information

ISPLSI2064VL-135LB100

Overview

The ISPLSI2064VL-135LB100 is a Complex Programmable Logic Device (CPLD) belonging to the ispLSI 2000V family. It features 2,000 system gates and 64 macro cells within a single integrated circuit. The device supports an in-system programmability architecture, allowing for reconfiguration without removal from the board. It operates with a maximum clock frequency of 118 MHz and includes JTAG boundary scan capabilities for testing and debugging. The component is housed in a 100-pin Plastic Quad Flat Package (PQFP) or compatible BGA variant, providing 64 I/O lines for interfacing with external systems.

Feature Summary

ispLSI 2000V Family Architecture
2,000 System Gates / 64 Macro Cells
In-System Programmability (ISP)
JTAG Boundary Scan Support

Applications

General-purpose digital logic replacement
Bus bridging and protocol conversion
Address decoding and control logic

Part Context

This part belongs to the legacy ispLSI 2000V series, which succeeded the earlier ispLSI 2000A family. While Lattice has transitioned focus toward newer FPGA and MachXO families, the ispLSI 2000V devices remain documented for specific low-power, high-density CPLD applications requiring non-volatile configuration.

How to buy

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
