ISSI30R11HXUMA1

Overview

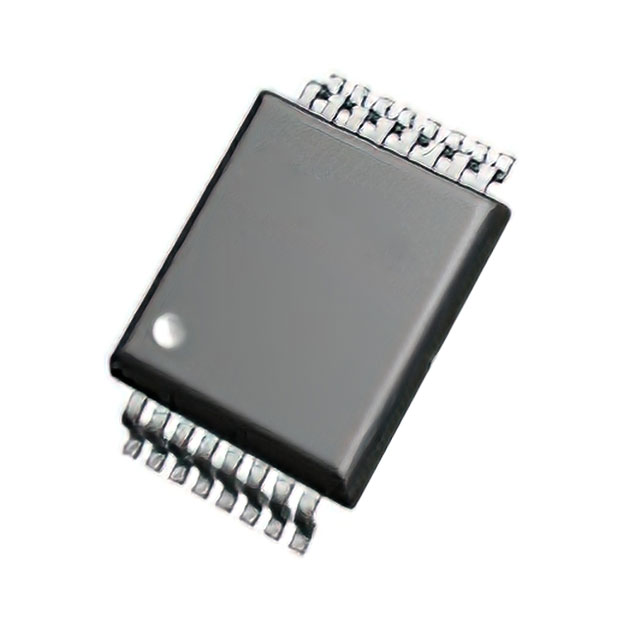

The ISSI30R11HXUMA1 is a single-channel digital isolator utilizing coreless transformer technology for galvanic isolation. It operates within a supply voltage range of 2.85 V to 3.5 V and supports a maximum insulation voltage of 5700 Vrms. The device features a unidirectional signal path with a typical propagation delay of 6 µs and rise/fall times of 1.9 µs/8 µs. It functions reliably across an extended temperature range from -40 °C to +125 °C. Packaged in a 16-PowerSSOP (PG-DSO-16-33) surface-mount housing, it draws a typical operating current of 16 mA.

Feature Summary

• Coreless transformer technology enables robust galvanic isolation without magnetic cores.
• Integrated protection features include over-current protection (OCP), one-time programmable diode (OTP), and dynamic magnetic coupling (DMC).
• Fast turn-on capability ensures precise timing control for solid-state relay applications.

Applications

• Microelectronic relays and solid-state contactors
• Industrial automation and robotics control systems
• Programmable logic controllers (PLCs)
• Power transmission and distribution equipment

Procurement Notes

Verify the complete part number including the suffix UMA1 to ensure correct tape-and-reel packaging configuration. Confirm that the 16-PowerSSOP footprint matches the target PCB layout. Ensure the design accommodates the specified 5700 Vrms isolation requirements and thermal management needs for operation up to 125 °C. Cross-reference the manufacturer's latest datasheet for any updates on recommended soldering profiles or moisture sensitivity levels.

Selection Notes

Select this component when high-voltage isolation is required for low-speed digital signals in industrial environments. The 6 µs propagation delay suits applications where switching speed is secondary to reliability and isolation strength. Consider the 16-pin PowerSSOP package for its wide creepage distance and thermal performance compared to standard DSO packages. Evaluate the 16 mA supply current against system power budgets for battery-operated or energy-efficient designs.

Part Context

This device belongs to Infineon’s iSSI30RxxH series of advanced solid-state isolators. It serves as a direct replacement for traditional optocouplers in microelectronic relay interfaces, offering superior longevity and faster response times. The series integrates gate drive capabilities, bridging the gap between pure digital isolators and isolated gate drivers for power semiconductor control.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs before considering alternative components from other manufacturers.

FAQ

What isolation technology does the ISSI30R11HXUMA1 use?

It utilizes coreless transformer technology for galvanic isolation, eliminating the need for magnetic cores found in traditional transformers.

Does the ISSI30R11HXUMA1 support bidirectional signaling?

No, the device is configured as a unidirectional isolator with a single channel.
