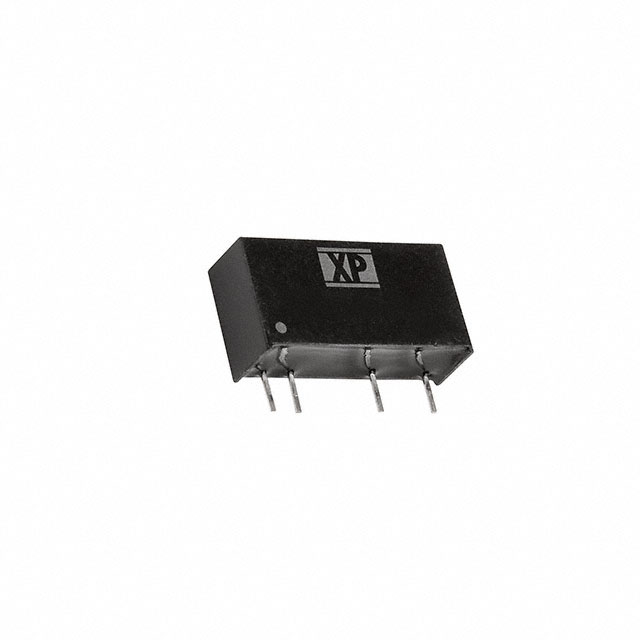

ITV1205S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER +/-5V 1W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for ITV1205S
- Description：DC DC CONVERTER +/-5V 1W
- Series：ITV (1W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：10.8V
- Voltage - Input (Max)：13.2V
- Voltage - Output 1：5V
- Voltage - Output 2：-5V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：100mA, 100mA
- Power (Watts)：1 W
- Voltage - Isolation：3 kV
- Applications：ITE (Commercial)
- Features：SCP
- Operating Temperature：-40°C ~ 105°C
- Efficiency：80%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module, 5 Leads
- Size / Dimension：0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for ITV1205S
