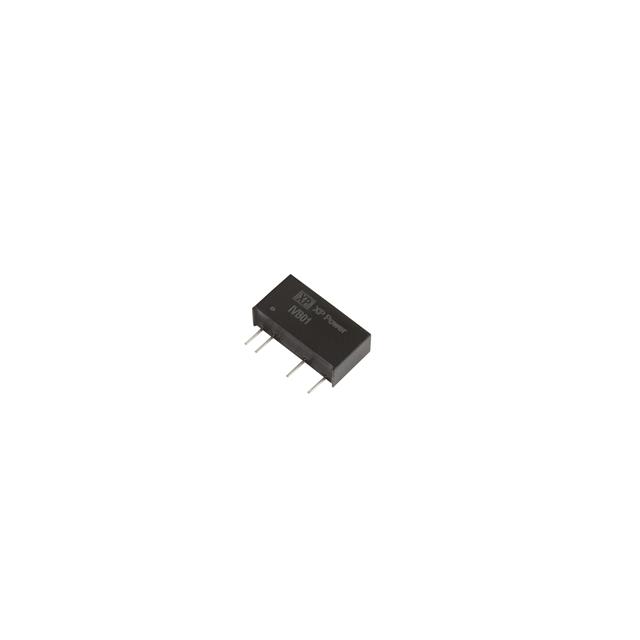

IVB0105S09 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER SINGLE 9V 1W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for IVB0105S09
- Description：DC DC CONVERTER SINGLE 9V 1W
- Series：IVB01 (1W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：5.5V
- Voltage - Output 1：9V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：111mA
- Power (Watts)：999 mW
- Voltage - Isolation：3 kV
- Applications：ITE (Commercial)
- Features：-
- Operating Temperature：-40°C ~ 105°C (With Derating)
- Efficiency：83%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module, 4 Leads
- Size / Dimension：0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：CE, UKCA, UL
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for IVB0105S09
