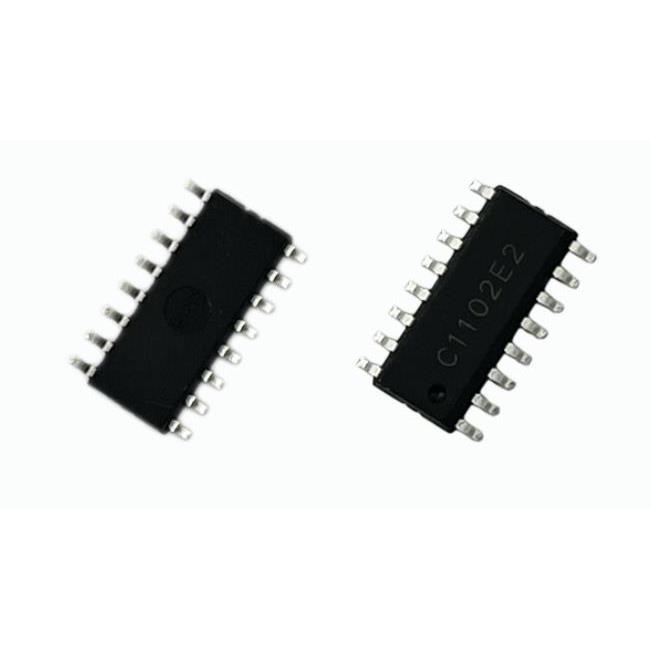

IVCC1102DR

Overview

The IVCC1102DR is a continuous conduction mode (CCM)图腾柱PFC controller manufactured by Zhiyin Electronics. It replaces traditional diode rectifier bridges with four MOSFETs for synchronous rectification and PFC boosting, eliminating diode forward voltage drop losses. The device supports 5V input supply with undervoltage lockout and features two synchronous rectification drive outputs and two high-frequency PFC drive outputs. It utilizes optimized AC current zero-crossing smooth control and fixed feedforward ratio technology to generate accurate PWM signals, preventing reverse current during AC power loss. The chip offers adjustable switching frequency and configurable dead time.

Feature Summary

• Eliminates diode forward voltage drop losses by replacing traditional rectifier bridges with synchronous MOSFET control
• Prevents AC reverse current through fast response PWM adjustment using patented input voltage feedforward control
• Achieves smooth AC zero-crossing current via optimized control techniques that reduce current spikes and ripple
• Provides comprehensive protection including output overvoltage, AC over/under voltage, and peak current limiting

Applications

• Server power supplies
• Compact PFC power modules
• Television and gaming console power supplies
• High-power laptop and mobile phone chargers
• Aviation electronic power systems

Procurement Notes

Verify the manufacturer designation as Zhiyin Electronics rather than Inventchip, as official documentation attributes the IVCC1102 series to this entity. Confirm the specific suffix DR corresponds to the SOIC-16L or QFN-20L package variants listed in the datasheet. Ensure compatibility with SiC or GaN devices if utilizing the synchronous rectification features. Validate that the application environment supports the specified 5V input supply and undervoltage lockout requirements.

Selection Notes

Select the IVCC1102DR for applications requiring high efficiency in high-current inputs where traditional diode bridge losses are significant. The chip is suitable for designs aiming for conversion efficiencies exceeding 98.5% at high power levels. Consider its analog control architecture for simplified development without programming needs. Evaluate its capability to handle AC input frequencies from 50Hz to 400Hz for versatile power system integration.

Part Context

The IVCC1102 is part of Zhiyin Electronics' portfolio of silicon carbide semiconductor solutions, focusing on power management and control chips. It represents an advancement in CCM图腾柱PFC technology, designed to enhance power conversion efficiency in modern electronic devices. The component addresses thermal management challenges by reducing heat generation associated with diode rectification, thereby supporting compact and reliable power supply designs across various industrial and consumer sectors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Designers should consult official replacement guides or contact the manufacturer directly for compatible alternatives within the IVCC110x series or other similar图腾柱PFC controllers.
