IXA10-HF5F10-27.120 MHZ

Crystals Overview

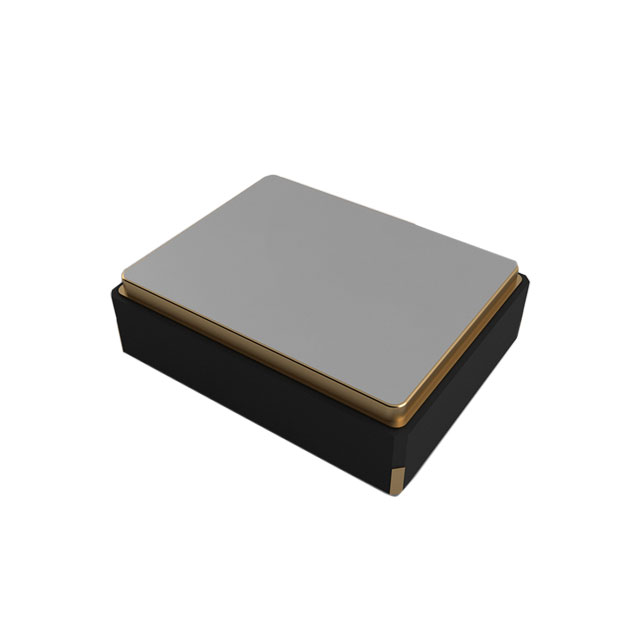

The ILSI IXA10-HF5F10-27.120 MHZ is a surface-mount crystal oscillator operating at a nominal frequency of 27.12 MHz. It belongs to the IXA10 series and features a compact 4-SMD, No Lead package with dimensions of 1.6mm x 1.2mm. The component specifies a load capacitance of 10pF and an equivalent series resistance (ESR) of 150 Ohms. Frequency tolerance is rated at ±20ppm, while frequency stability is maintained within ±30ppm across the specified operating temperature range.

Crystals Feature Summary

• Surface-mount design for automated assembly
• Compact 1.6mm x 1.2mm footprint
• High frequency stability specifications

Crystals Applications

• Clock generation in digital circuits
• Microcontroller timing references
• Communication interface synchronization

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact electrical parameters match system requirements. Confirm package orientation and pin configuration details prior to integration. Cross-reference the lot date code and authenticity documentation to guarantee component reliability and compliance with quality standards.

Crystals Selection Notes

Select this component when a precise 27.12 MHz reference signal is required in space-constrained designs. The low profile SMD package facilitates high-density PCB layouts. Ensure the circuit design accommodates the 10pF load capacitance and 150 Ohm ESR characteristics to maintain optimal oscillation performance and frequency accuracy.

Crystals Part Context

This part is a member of the IXA10 series from ILSI America, designed for general-purpose timing applications. It utilizes standard quartz crystal technology housed in a leadless surface-mount case. The series offers various frequency options tailored for consumer electronics and industrial control systems requiring stable clock signals.

Crystals Replacement Considerations

Direct substitutes must match the 27.12 MHz frequency, 4-SMD no-lead package, 10pF load capacitance, and similar dimensional constraints. Verify that alternative sources provide equivalent ±20ppm tolerance and ±30ppm stability ratings to ensure functional compatibility without redesigning the host circuitry.
