IXA12-FBFF10-24.000MHZ

Crystals Overview

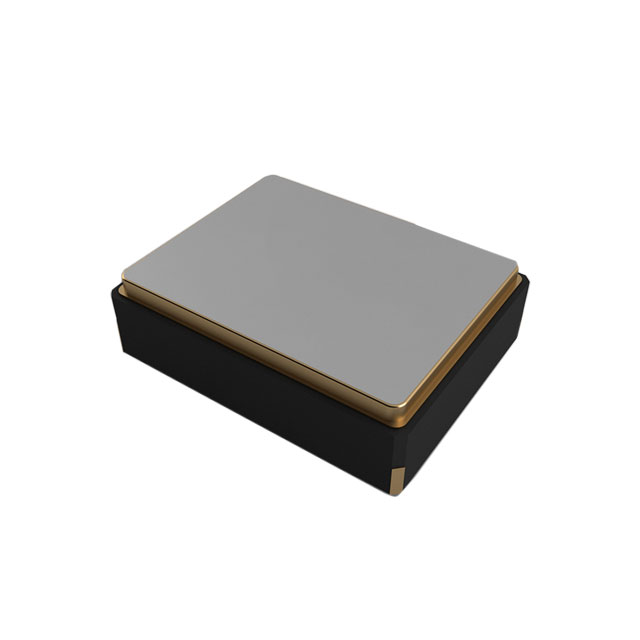

The ILSI IXA12-FBFF10-24.000MHZ is a parallel fundamental quartz crystal designed for surface mount applications. It operates at a nominal frequency of 24 MHz with a frequency tolerance of ±30 ppm and stability of ±50 ppm. The component features a load capacitance of 10 pF and a series resistance of 100 Ohms. Packaged in a compact 4-SMD, No Lead form factor measuring 2.0 mm x 1.6 mm, it supports an operating temperature range from -40°C to +125°C. This device meets AEC-Q200 automotive standards.

Crystals Feature Summary

• Automotive-grade reliability compliant with AEC-Q200 standards
• Compact 4-SMD no-lead surface mount package design
• High temperature stability suitable for demanding environments

Crystals Applications

• Automotive navigation systems
• GPS module timing references
• In-vehicle infotainment controllers

Crystals Procurement Notes

Verify the specific suffix codes against official ILSI documentation to ensure correct frequency tolerance and stability ratings. Confirm that the ordering part number matches the required AEC-Q200 qualification status. Check datasheet revisions for any updates to mechanical dimensions or recommended soldering profiles prior to procurement.

Crystals Selection Notes

Select this component when a 24 MHz reference is required for automotive electronics. Ensure the circuit design accommodates the 10 pF load capacitance and 100 Ohm series resistance. Verify that the PCB footprint matches the 2.0x1.6 mm package dimensions and that the thermal environment stays within the specified -40°C to +125°C range.

Crystals Part Context

This crystal belongs to the IXA12 series from ILSI America, which focuses on small-footprint SMD crystals for automotive and industrial markets. The series utilizes AT-cut quartz resonators to provide stable frequency generation. The FBFF10 designation indicates specific package and electrical characteristics tailored for high-volume surface mount assembly processes.

Crystals Replacement Considerations

Cross-reference with other AEC-Q200 qualified 24 MHz SMD crystals from manufacturers such as Epson, NDK, or TXC. Ensure substitute parts match the 2.0x1.6 mm package size, 10 pF load capacitance, and ±30 ppm tolerance to maintain board compatibility.
