IXA16-HBFF12-13.560MHZ

Crystals Overview

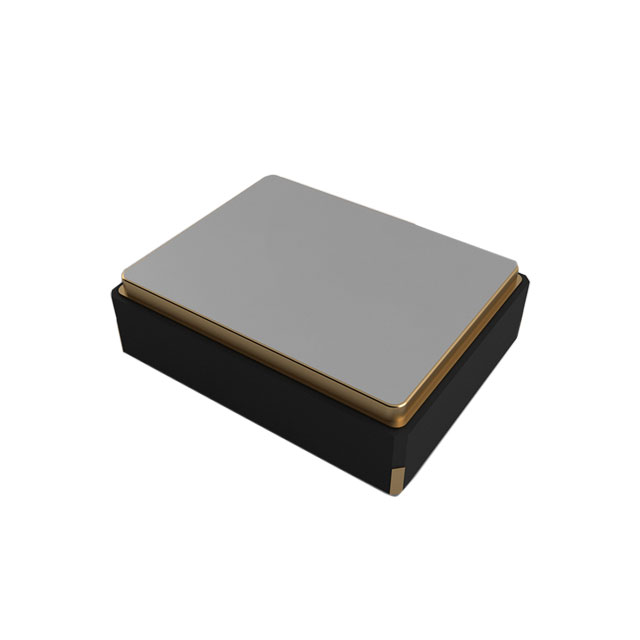

The IXA16-HBFF12-13.560MHZ is a surface-mount crystal oscillator manufactured by ILSI, designed for precise frequency generation in electronic circuits. It operates at a nominal frequency of 13.56 MHz with a normal temperature frequency tolerance of ±20ppm. The component features a load capacitance of 12pF and an equivalent series resistance (ESR) of 80 Ohms. It is housed in a compact 4-SMD, No Lead package, suitable for automated assembly processes. The device supports an operating temperature range from -40°C to +125°C, ensuring reliability under varying thermal conditions. Compliance with RoHS standards confirms its suitability for environmentally conscious manufacturing applications.

Crystals Feature Summary

• High stability frequency output suitable for RFID and NFC systems
• Compact surface-mount design for space-constrained PCB layouts
• Wide operating temperature range for industrial environments

Crystals Applications

• RFID reader modules
• NFC communication devices
• Wireless charging transmitters
• Industrial control systems requiring precise timing

Crystals Procurement Notes

Verify the specific suffix matches the required frequency and tolerance before ordering. Confirm package dimensions against PCB footprint requirements. Ensure supply chain sources provide valid RoHS compliance documentation. Check for lead-free certification if required by project specifications. Validate manufacturer authenticity through authorized distribution channels to avoid counterfeit components.

Crystals Selection Notes

Select this component when a stable 13.56 MHz reference is needed for wireless communication protocols. Consider the 12pF load capacitance compatibility with the host oscillator circuit. Evaluate the ±20ppm tolerance against system phase noise requirements. Assess the 80 Ohm ESR impact on startup time and drive level. Verify thermal performance within the specified -40°C to +125°C range for the intended application environment.

Crystals Part Context

This part belongs to ILSI's IXA series of surface-mount crystals, which are engineered for high-frequency stability and miniaturization. The series typically includes various frequencies optimized for common wireless standards. The HBFF designation indicates specific packaging and mounting characteristics. These components are widely used in consumer electronics and industrial automation where reliable timing signals are critical for data integrity and synchronization.

Crystals Replacement Considerations

Direct substitutes must match the 13.56 MHz frequency, 12pF load capacitance, and 4-SMD package. Verify equivalent ESR and tolerance specifications to ensure circuit compatibility. Cross-reference pinout and mechanical dimensions for seamless PCB integration. Consult manufacturer cross-reference lists for approved alternative part numbers.
