IXA18-FBFF8-16.000MHZ

Crystals Overview

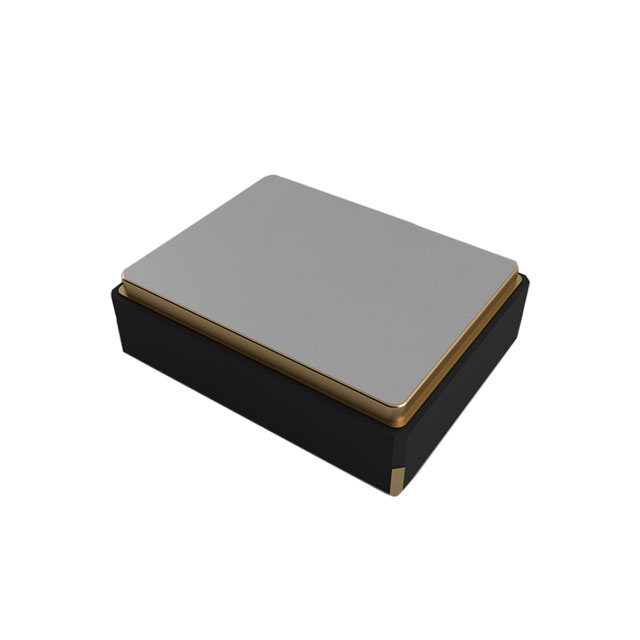

The ILSI IXA18-FBFF8-16.000MHZ is a surface-mount crystal oscillator operating at a nominal frequency of 16 MHz. It features an 8 pF load capacitance and a series resistance of 50 Ohms. The component meets AEC-Q200 automotive standards, ensuring reliability in demanding environments. It supports a wide operating temperature range from -40°C to +125°C. Frequency stability is specified at ±30 ppm over the full temperature range, with an initial tolerance of ±50 ppm.

Crystals Feature Summary

• Automotive-grade reliability certified under AEC-Q200 standards for robust performance.
• Wide operating temperature range suitable for harsh environmental conditions.
• Surface-mount package design facilitates automated assembly processes.

Crystals Applications

• Automotive electronic control units requiring precise timing signals
• Infotainment systems needing stable clock references
• Sensor interface circuits in vehicle networks

Crystals Procurement Notes

Verify that the specific order matches the exact model number to ensure correct frequency and tolerance specifications. Confirm compliance requirements such as RoHS status if necessary for your region. Check datasheets for detailed electrical characteristics and mechanical dimensions before integration into final designs.

Crystals Selection Notes

Choose this component when automotive certification is mandatory for the application. The 16 MHz frequency suits common microcontroller clock inputs. Ensure the PCB layout accommodates the SMD footprint and considers thermal management within the specified temperature limits.

Crystals Part Context

This part belongs to the IXA18 series of crystals from ILSI America. The series is designed for high-reliability applications, particularly in the automotive sector. The FBFF8 suffix indicates the specific package type and pin configuration used for surface mounting on printed circuit boards.

Crystals Replacement Considerations

Direct substitutes must match the 16 MHz frequency, 8 pF load capacitance, and AEC-Q200 qualification. Verify equivalent packages and temperature ratings to ensure functional compatibility without redesigning the host circuitry.
