IXA20-HF5F12-12.000MHZ

Crystals Overview

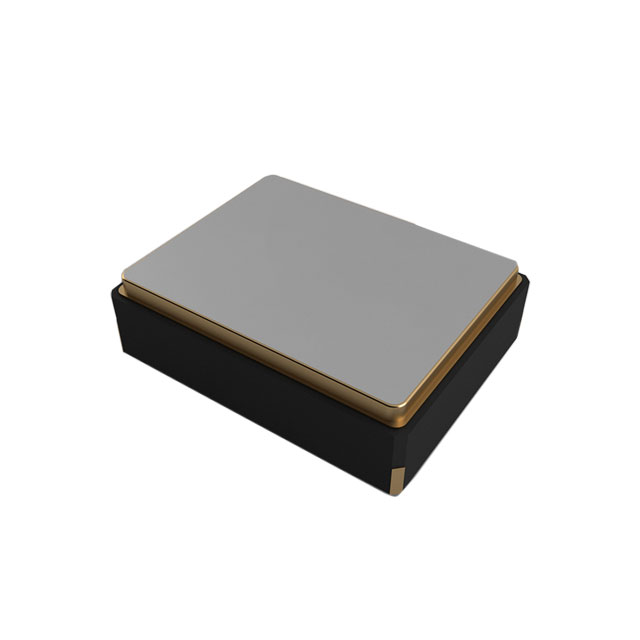

The IXA20-HF5F12-12.000MHZ is a fundamental mode quartz crystal oscillator manufactured by ILSI America. It operates at a nominal frequency of 12 MHz with a frequency tolerance of ±20 ppm and a load capacitance of 12 pF. The component features an equivalent series resistance (ESR) of 60 Ohms and is housed in a 4-SMD, No Lead package measuring 5mm x 3.2mm. It supports an operating temperature range from -40°C to 85°C.

Crystals Feature Summary

• Fundamental oscillation mode for stable frequency generation
• Surface-mount design with no lead construction
• Wide industrial temperature range capability

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific load capacitance and ESR requirements against the target circuit design to ensure proper oscillation stability. Confirm that the 4-SMD footprint matches the PCB layout constraints. Ensure the selected variant meets the required temperature grade for the intended operational environment. Cross-reference the manufacturer's latest datasheet for any updates on mechanical dimensions or material compliance.

Crystals Selection Notes

Select this component when a precise 12 MHz reference is needed for digital systems requiring ±20 ppm accuracy. Consider the 12 pF load capacitance compatibility with the host oscillator circuit. Evaluate the 60 Ohm ESR against the driver strength capabilities of the connected IC. The industrial temperature range makes it suitable for demanding environments where standard commercial grades may fail.

Crystals Part Context

This part belongs to the IXA20 series of surface-mount crystals from ILSI America. The series offers various frequencies and packages tailored for compact electronic designs. The HF5F12 suffix indicates specific electrical characteristics including the 12 MHz frequency and associated parameters. This series is designed for high reliability in consumer and industrial electronics applications.

Crystals Replacement Considerations

Direct substitutes must match the 12 MHz frequency, 12 pF load capacitance, and 4-SMD package dimensions. Verify equivalent ESR values to prevent oscillation failure. Check for compatible temperature ratings if operating conditions exceed standard limits. Consult manufacturer cross-reference lists for verified alternatives.
