Product Detailed Parameters

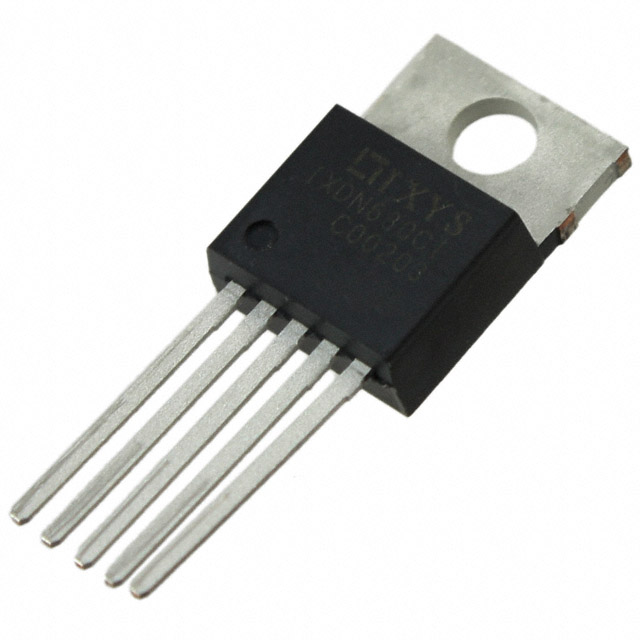

- Description：IC GATE DRVR LOW-SIDE TO220-5
- Series：-
- Mfr：Littelfuse Inc.
- Package：Tube
- Driven Configuration：Low-Side
- Channel Type：Single
- Number of Drivers：1
- Gate Type：IGBT, MOSFET (N-Channel, P-Channel)
- Voltage - Supply：12.5V ~ 35V
- Logic Voltage - VIL, VIH：0.8V, 3.5V
- Current - Peak Output (Source, Sink)：30A, 30A
- Input Type：Non-Inverting
- Rise / Fall Time (Typ)：11ns, 11ns
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-220-5
- Supplier Device Package：TO-220-5
- Grade：-
- Qualification：-
- High Side Voltage - Max (Bootstrap)：-
Download product information
Overview
The IXDN630CI is a low-side MOSFET gate driver manufactured by Littelfuse (IXYS). It features a TO-220-5 package and supports a supply voltage range of 12.5V to 35V. The device delivers a peak source/sink drive current of 30A with rise and fall times under 20ns. It operates within an extended temperature range from -40°C to +125°C and includes under-voltage lockout protection.
Feature Summary
- Provides high-speed switching with fast rise and fall times for efficient power control
- Delivers high peak drive current capability to effectively switch power MOSFETs and IGBTs
- Includes under-voltage lockout protection to prevent improper operation during low supply conditions
Applications
- Driving IXYS power MOSFETs and IGBTs in high-frequency applications
- High-power industrial motor drives requiring robust gate control
- Power conversion systems utilizing low-side switching configurations
Procurement Notes
Verify the specific suffix 'CI' corresponds to the TO-220-5 flange mount package when sourcing. Confirm that the required supply voltage meets the minimum threshold of 12.5V for proper UVLO release. Ensure thermal management solutions are adequate for the TO-220 form factor given the 30A output capability and operating temperature range specifications.
Selection Notes
Select this component for applications requiring a single-channel low-side driver with high current capacity. It is suitable where fast switching speeds are critical to minimize switching losses. Consider the TO-220 package constraints for PCB layout and heat dissipation compared to surface-mount alternatives like the MYI variant if space is limited.
Part Context
This part belongs to the IXD_630 series of high-speed gate drivers, which also includes the IXDD630 (inverting) and IXDI630 (non-inverting) variants. The series is designed specifically for driving modern power semiconductors. The CI suffix denotes the through-hole TO-220 package, distinguishing it from surface-mount options within the same functional family.
Replacement Considerations
The IXDD630CI serves as a pin-compatible alternative if an inverting logic configuration is acceptable instead of the non-inverting function of the IXDN630CI.
