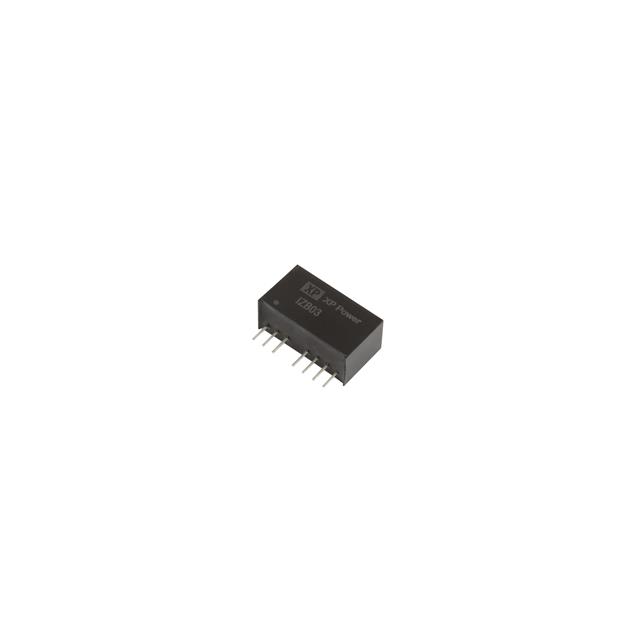

IZB0305S09 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is SINGLE O/P DC-DC PCB MOUNT 3W 1.. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for IZB0305S09
- Description：SINGLE O/P DC-DC PCB MOUNT 3W 1.
- Series：IZB03 (3W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：9V
- Voltage - Output 1：9V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：278mA
- Power (Watts)：2.502 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：Remote On/Off
- Operating Temperature：-40°C ~ 85°C
- Efficiency：74%
- Mounting Type：Through Hole
- Package / Case：8-SIP Module, 7 Leads
- Size / Dimension：0.87" L x 0.37" W x 0.49" H (22.0mm x 9.5mm x 12.5mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：CE, UKCA, UL
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for IZB0305S09
